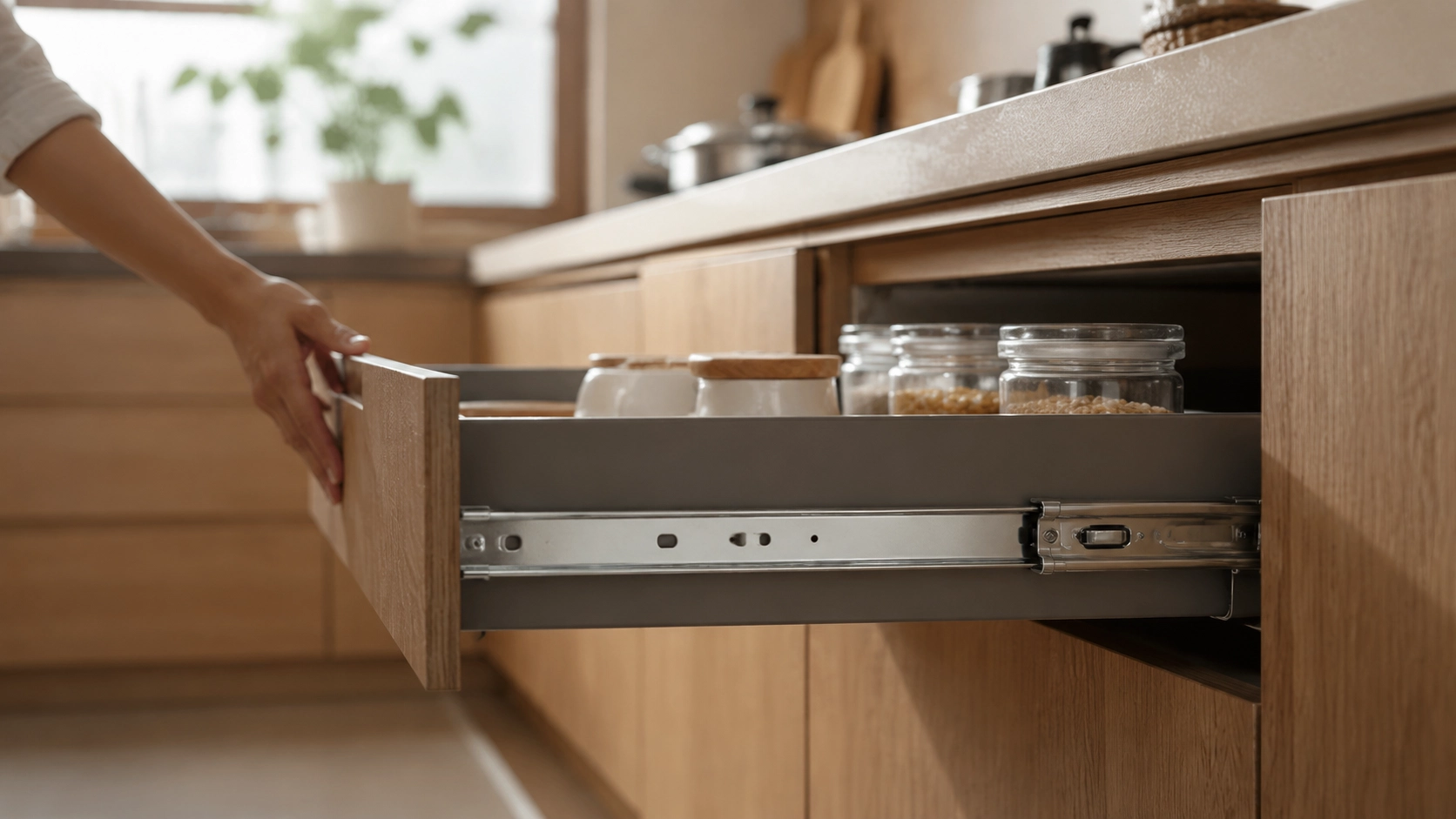

Drawer Slides for Kitchen Cabinets
What Kitchen Cabinets Demand
Technical requirements: load ratings 35-100 lb/pair (cutlery through pot-and-pan drawers), full-extension, soft-close damping with 1.2-1.8 sec close time, noise below 35 dB(A), pull force <=15 N (ANSI/BIFMA X5.9), and cycle life 80,000+ per KCMA A161.1.
BWD serves with soft-close full-extension (35-100 lb) and standard ball bearing for cost-sensitive projects. Both side-mount (45 mm) and under-mount (concealed, frameless Euro-style) options. All kitchen-grade slides ship KCMA certified, tested to BHMA A156.9 residential standard.
Technical Selection Guide
Match by Drawer Type
Cutlery/utensil drawers (≤35 lb): standard or soft-close. Pot-and-pan (75–100 lb): heavy-duty soft-close with dual dampers for wide drawers. Spice pull-outs (20–35 lb): compact 27/35 mm width slides.
Match by Cabinet Style
Face-frame (US traditional): side-mount standard with mounting brackets for inset. Frameless/Euro: under-mount concealed preferred with BWD snap-in clips for jig-free install.
Soft-Close Decision
Standard for all consumer-visible drawers. Builder-grade alternative: standard slides + clip-on dampers (lower cost, less consistent). Dual damper required for drawers wider than 600 mm.
Noise & Ergonomics Check
Specify <35 dB(A) for open-plan living areas. Confirm pull force <15 N for ADA/aging-in-place compliance. Both are standard on BWD kitchen series.
Packaging & Compliance
Retail channel: branded box with QR installation video. Trade/contractor: bulk pack 25 pairs. Certifications: KCMA A161.1, BHMA Grade 1, BIFMA X5.9.
Match by Drawer Type
Cutlery/utensil drawers (≤35 lb): standard or soft-close. Pot-and-pan (75–100 lb): heavy-duty soft-close with dual dampers for wide drawers. Spice pull-outs (20–35 lb): compact 27/35 mm width slides.
Match by Cabinet Style
Face-frame (US traditional): side-mount standard with mounting brackets for inset. Frameless/Euro: under-mount concealed preferred with BWD snap-in clips for jig-free install.
Soft-Close Decision
Standard for all consumer-visible drawers. Builder-grade alternative: standard slides + clip-on dampers (lower cost, less consistent). Dual damper required for drawers wider than 600 mm.
Noise & Ergonomics Check
Specify <35 dB(A) for open-plan living areas. Confirm pull force <15 N for ADA/aging-in-place compliance. Both are standard on BWD kitchen series.
Packaging & Compliance
Retail channel: branded box with QR installation video. Trade/contractor: bulk pack 25 pairs. Certifications: KCMA A161.1, BHMA Grade 1, BIFMA X5.9.
Combo Solution

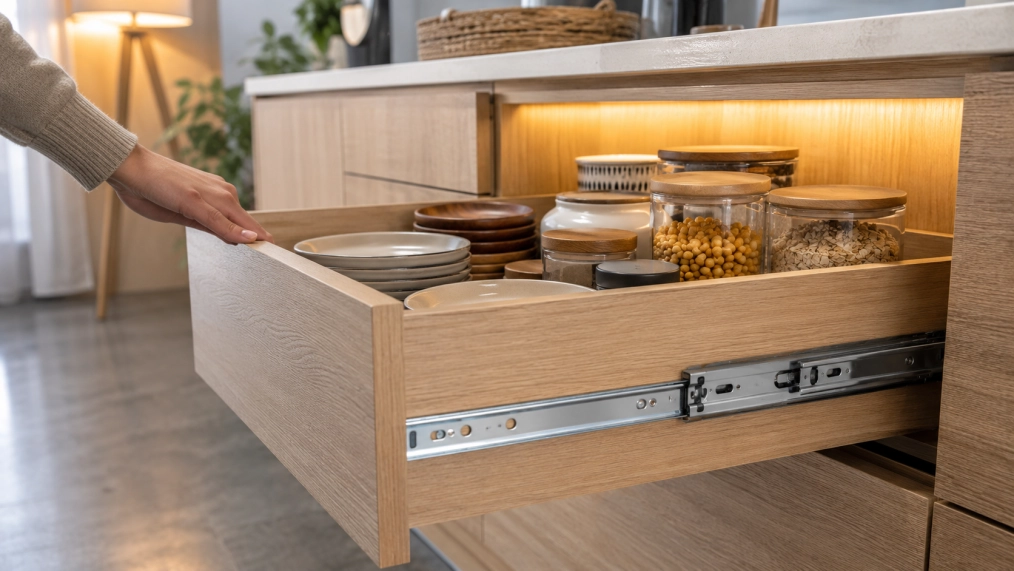

Soft-Close for Kitchen Cabinets
Kitchen Slide Specification Workflow
Cabinet Design Phase
Define drawer sizes, weight classes, and cabinet style (face-frame vs frameless). Choose side-mount vs under-mount based on aesthetic requirement.
Slide Type Selection
Match drawer type to slide: soft-close for consumer-facing, standard for builder-grade. Specify load rating with 25% margin. Confirm KCMA certification requirement.
Prototype Testing
Install samples in cabinet prototype. Cycle 100+ times. Verify: close time 1.2-1.8 sec, pull force <15 N, noise <35 dB(A), and consistent operation.
Production Integration
Confirm mounting pattern compatibility with your production jig. BWD provides exact-dimension CAD drawings for jig programming. Packaging configured for your line speed.
Quality Assurance
BWD performs AQL inspection per order. Certificate of Conformance included with each shipment. Warranty claim rate monitoring with quarterly report to your quality team.
Cabinet Design Phase
Define drawer sizes, weight classes, and cabinet style (face-frame vs frameless). Choose side-mount vs under-mount based on aesthetic requirement.
Slide Type Selection
Match drawer type to slide: soft-close for consumer-facing, standard for builder-grade. Specify load rating with 25% margin. Confirm KCMA certification requirement.
Prototype Testing
Install samples in cabinet prototype. Cycle 100+ times. Verify: close time 1.2-1.8 sec, pull force <15 N, noise <35 dB(A), and consistent operation.
Production Integration
Confirm mounting pattern compatibility with your production jig. BWD provides exact-dimension CAD drawings for jig programming. Packaging configured for your line speed.
Quality Assurance
BWD performs AQL inspection per order. Certificate of Conformance included with each shipment. Warranty claim rate monitoring with quarterly report to your quality team.
