Crash Safety Compliance
FMVSS 208/ECE R17 require cargo compartments not open during impact. Standard friction-lock fails under 20+ g. BWD positive-engagement tested to 30 g per SAE J1455.

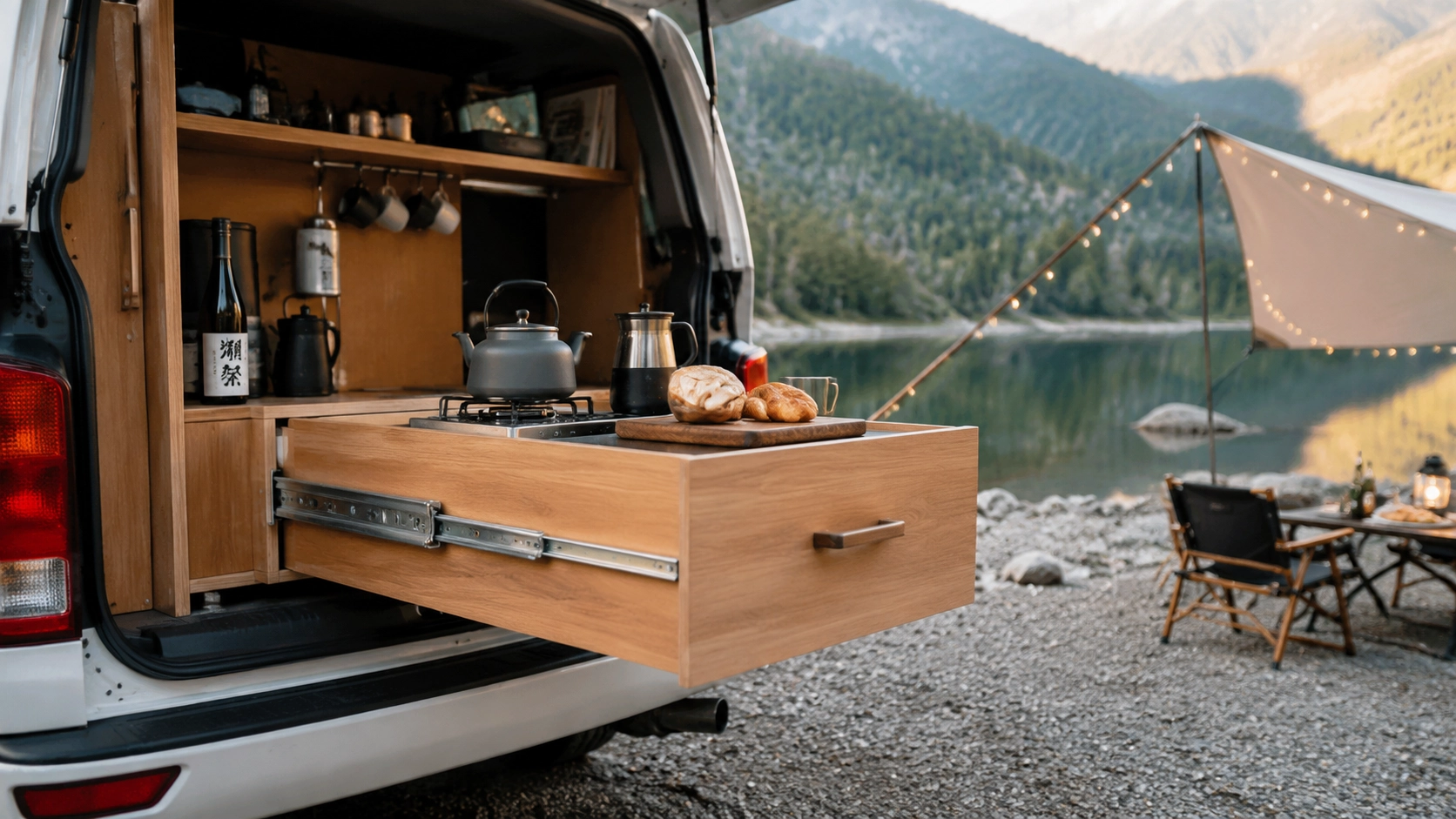

Drawer Slides for the Automotive Industry
BWD Vehicle Track Record
Vehicle upfitters supplied (NA, EU, AU)
Crash-force lock retention (SAE J1455)
Salt-belt service life (e-coat + zinc)
810G vibration qualified
Industry Overview

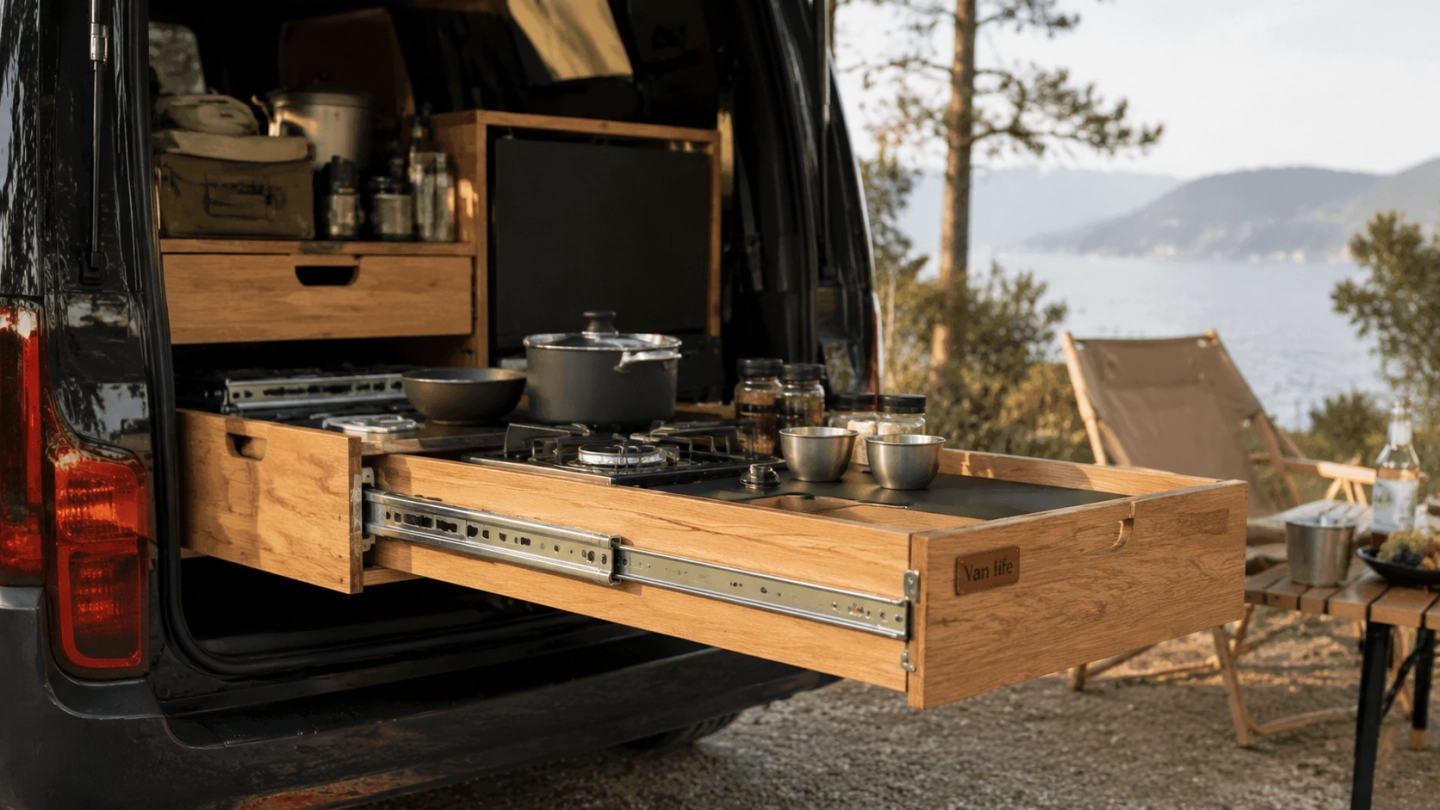

The automotive industry uses drawer slides in three primary applications: (1) service body truck storage (utility trucks, fire/rescue, mobile workshops), (2) RV interior cabinetry, (3) in-vehicle storage for law enforcement, military, and EMS. North America TAM exceeds 25 million slide pairs annually.
Vehicle OEMs and upfitters (Adrian Steel, Knapheide, Weather Guard, Decked) specify to stringent standards: SAE J1455 (vibration endurance), FMVSS 208 (occupant protection - drawers must not open in crashes), NFPA 1901 (fire apparatus). Load requirements: 75 lb (RV kitchen) to 500 lb (mining truck tool packs).
BWD supplies 50+ upfitters across North America, Europe, and Australia. Our automotive series: dual-lock, e-coat+zinc duplex corrosion, MIL-STD-810G vibration testing, high-temp grease (-40C to +120C), custom brackets engineered for specific truck body models.
Vehicle OEMs and upfitters (Adrian Steel, Knapheide, Weather Guard, Decked) specify to stringent standards: SAE J1455 (vibration endurance), FMVSS 208 (occupant protection - drawers must not open in crashes), NFPA 1901 (fire apparatus). Load requirements: 75 lb (RV kitchen) to 500 lb (mining truck tool packs).
BWD supplies 50+ upfitters across North America, Europe, and Australia. Our automotive series: dual-lock, e-coat+zinc duplex corrosion, MIL-STD-810G vibration testing, high-temp grease (-40C to +120C), custom brackets engineered for specific truck body models.
Typical Applications
You May Also Need
Vehicle Industry Pain Points
Vibration-Induced Wear
Road vibration (5-200 Hz, 0.5-2 g RMS) causes bearing brinelling in loaded drawers. BWD through-hardened raceways (HRC 58-62) resist this; competitors using case-hardened (HRC 40-45) fail 3-5x sooner.
Mixed-Environment Corrosion
Road salt + rain + dust + UV in the same day. Zinc alone = ~18 months in salt-belt service. BWD e-coat+zinc duplex = 200+ h salt spray = ~5 years real-world service.
Temperature Extremes
Arizona toolbox +70°C, Minnesota winter -35°C. Standard petroleum grease sluggish below -10°C, thin above +60°C. BWD synthetic grease rated -40°C to +120°C covers all conditions.
TEST REPORT
Certificate No
GZMR111022658
Date of Certificate Issuance
2011/10/19
Certification Authority
SGS
Description
Test Report
Certificate No
GZ0905039248/CHEM
Date of Certificate Issuance
2009/05/21
Certification Authority
SGS
Description
Test Report
Certificate No
GZ0905039248/CHEM
Date of Certificate Issuance
2009/05/21
Certification Authority
SGS
Description
Test Report
Certificate No
SDHGR100801317FT
Date of Certificate Issuance
2010/08/30
Certification Authority
SGS
Description
Test Report PHOTO APPENDIX
Certificate No
GZHGR2009030307
Date of Certificate Issuance
-
Certification Authority
SGS
Description
Test Report
Certificate No
GZ0905039248/CHEM
Date of Certificate Issuance
2009/05/21
Certification Authority
SGS
Description
Test Report
Certificate No
GZ0905039248/CHEM
Date of Certificate Issuance
2009/05/21
Certification Authority
SGS
Description
Test Report
Certificate No
GLHGO060200126FT
Date of Certificate Issuance
2006/03/30
Certification Authority
SGS
Description
Test Report
Certificate No
GLHGR080300196FT
Date of Certificate Issuance
2008/03/10
Certification Authority
SGS
Description
Test Report PHOTO APPENDIX
Certificate No
GLHGR070701091FT
Date of Certificate Issuance
-
Certification Authority
SGS
Description
