Load Capacity Margin
A fully loaded tool drawer often weighs 60-80 kg. Specifying 100 lb (45 kg) slides leaves zero safety margin. We recommend 25%+ headroom — pointing to 150 lb slides for most industrial tool drawers.

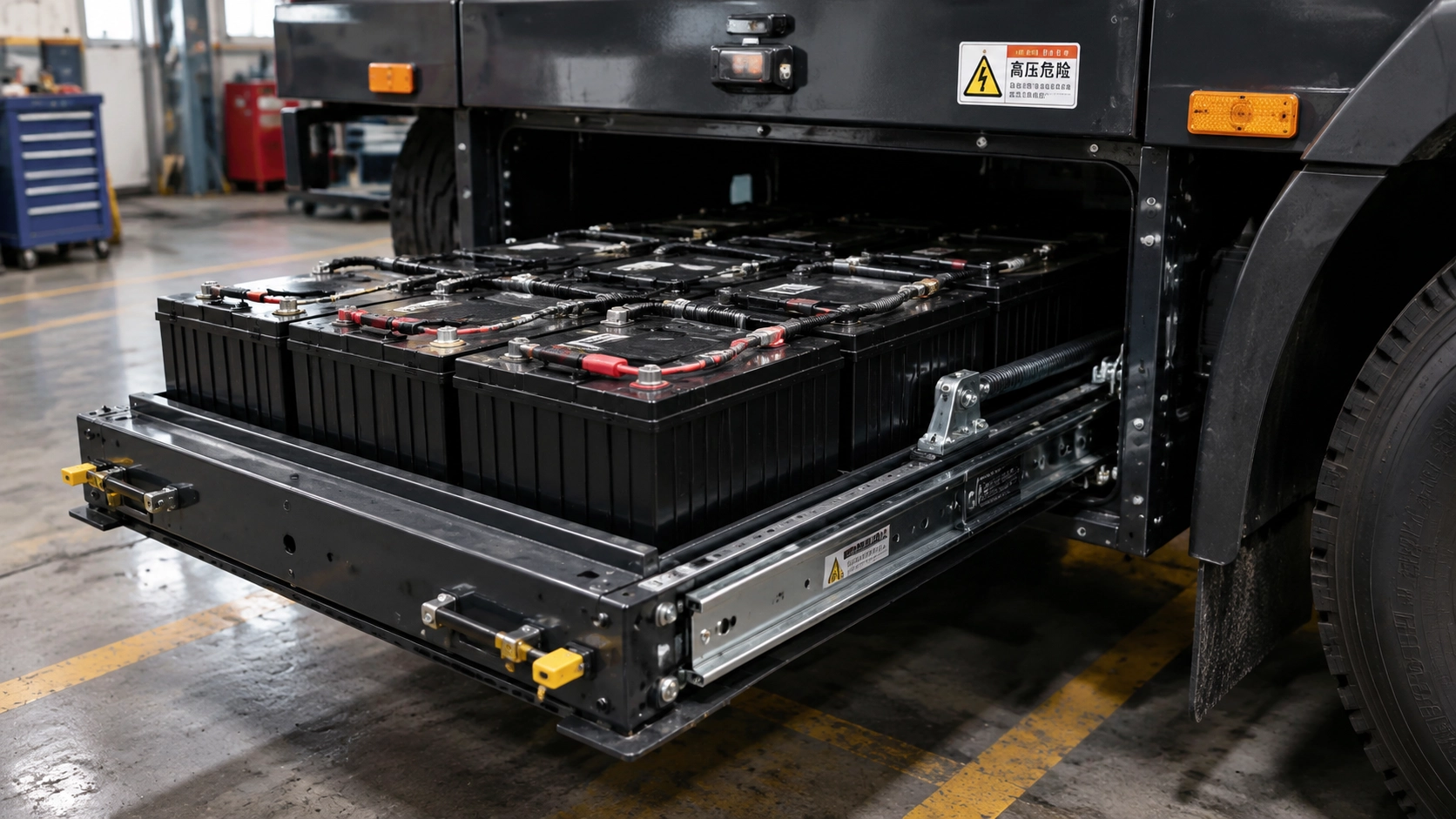

Drawer Slides for Industrial Cabinets
Heavy-duty, oil-resistant, high cycle slides
Application Overview
Industrial cabinets - workshop tool storage, CNC machine drawer modules, maintenance parts cabinets, and heavy parts bins - represent one of the most demanding applications for drawer slides. Loaded drawer weights routinely reach 50-150 kg, usage involves thousands of cycles per month, and environments include cutting oil, metal dust, and coolant mist contamination.
BHMA A156.9 classifies industrial cabinet slides as heavy-duty commercial (Grade 1HD), requiring 50,000+ cycles at rated load without bearing degradation or drag increase >20%. Most industrial OEMs additionally require: full-extension for complete rear-access, positive lock-out (drawer stays open during maintenance), and lock-in (secured during machine operation or vehicle transit).
BWD serves this segment with 100 lb, 150 lb, and 250 lb heavy-duty series in side-mount and under-mount. All use 1.2-1.5 mm cold-rolled steel rails, hardened raceways, and zinc or e-coat finishes rated 72+ h salt spray.
BHMA A156.9 classifies industrial cabinet slides as heavy-duty commercial (Grade 1HD), requiring 50,000+ cycles at rated load without bearing degradation or drag increase >20%. Most industrial OEMs additionally require: full-extension for complete rear-access, positive lock-out (drawer stays open during maintenance), and lock-in (secured during machine operation or vehicle transit).
BWD serves this segment with 100 lb, 150 lb, and 250 lb heavy-duty series in side-mount and under-mount. All use 1.2-1.5 mm cold-rolled steel rails, hardened raceways, and zinc or e-coat finishes rated 72+ h salt spray.
Key Challenges in Industrial Cabinet Design
Contamination Resistance
Metal chips, cutting oil, and coolant penetrate bearing raceways. Standard grease-packed bearings lose smoothness within 6-12 months. BWD sealed bearing cartridge option extends service intervals to 24+ months.
Vibration & Shock
Cabinets near stamping presses or CNC mills experience 5-50 Hz, 0.5-2 g continuous vibration. Without locking, drawers drift open — a safety hazard. Our dual lock-in/lock-out eliminates this.
Ergonomic Opening Force
OSHA/EU Machinery Directive recommend pull force ≤90 N. At 150 lb load, BWD slides achieve <60 N — well within compliance and comfortable for repeated one-hand operation.
Service Life Expectation
Industrial cabinets are capital equipment (10-20 year lifespan). 50,000-cycle rating at full load maps to ~15 years at 10 cycles/day — matching expected cabinet service life.
Technical Selection Guide
1
Determine Loaded Weight
Weigh drawer fully loaded. Multiply by 1.25 for stationary cabinets or 1.5 for mobile/vehicle environments. Result = minimum slide rating per pair.
2
Choose Extension Type
Full-extension (100%) standard for tool access. Over-travel (105-115%) for deep cabinets needing rear items to clear the face. 3/4-extension only for shallow parts bins.
3
Select Mount Style
Side-mount is default (widest compatibility, easiest install). Under-mount frees interior width but requires flat drawer bottom.
4
Specify Locking
Lock-out (hold-open) essential for maintenance access. Lock-in (hold-closed) required for mobile cabinets, vehicles, seismic zones. BWD dual-lock provides both in one slide.
5
Select Finish
Zinc (standard, 72+ h) for indoor dry environments. E-coat (200+ h) for moderate moisture. Stainless 304 (500+ h) for washdown. 316L (1000+ h) for chemical/marine exposure.
6
Confirm Dimensions
Measure cabinet depth, drawer depth, clearance (12.7 mm/side for 45 mm slides). Stock lengths 250–900 mm in 50 mm increments. Custom lengths available on MOQ 500 pairs.
1
Determine Loaded Weight
Weigh drawer fully loaded. Multiply by 1.25 for stationary cabinets or 1.5 for mobile/vehicle environments. Result = minimum slide rating per pair.
2
Choose Extension Type
Full-extension (100%) standard for tool access. Over-travel (105-115%) for deep cabinets needing rear items to clear the face. 3/4-extension only for shallow parts bins.
3
Select Mount Style
Side-mount is default (widest compatibility, easiest install). Under-mount frees interior width but requires flat drawer bottom.
4
Specify Locking
Lock-out (hold-open) essential for maintenance access. Lock-in (hold-closed) required for mobile cabinets, vehicles, seismic zones. BWD dual-lock provides both in one slide.
5
Select Finish
Zinc (standard, 72+ h) for indoor dry environments. E-coat (200+ h) for moderate moisture. Stainless 304 (500+ h) for washdown. 316L (1000+ h) for chemical/marine exposure.
6
Confirm Dimensions
Measure cabinet depth, drawer depth, clearance (12.7 mm/side for 45 mm slides). Stock lengths 250–900 mm in 50 mm increments. Custom lengths available on MOQ 500 pairs.
