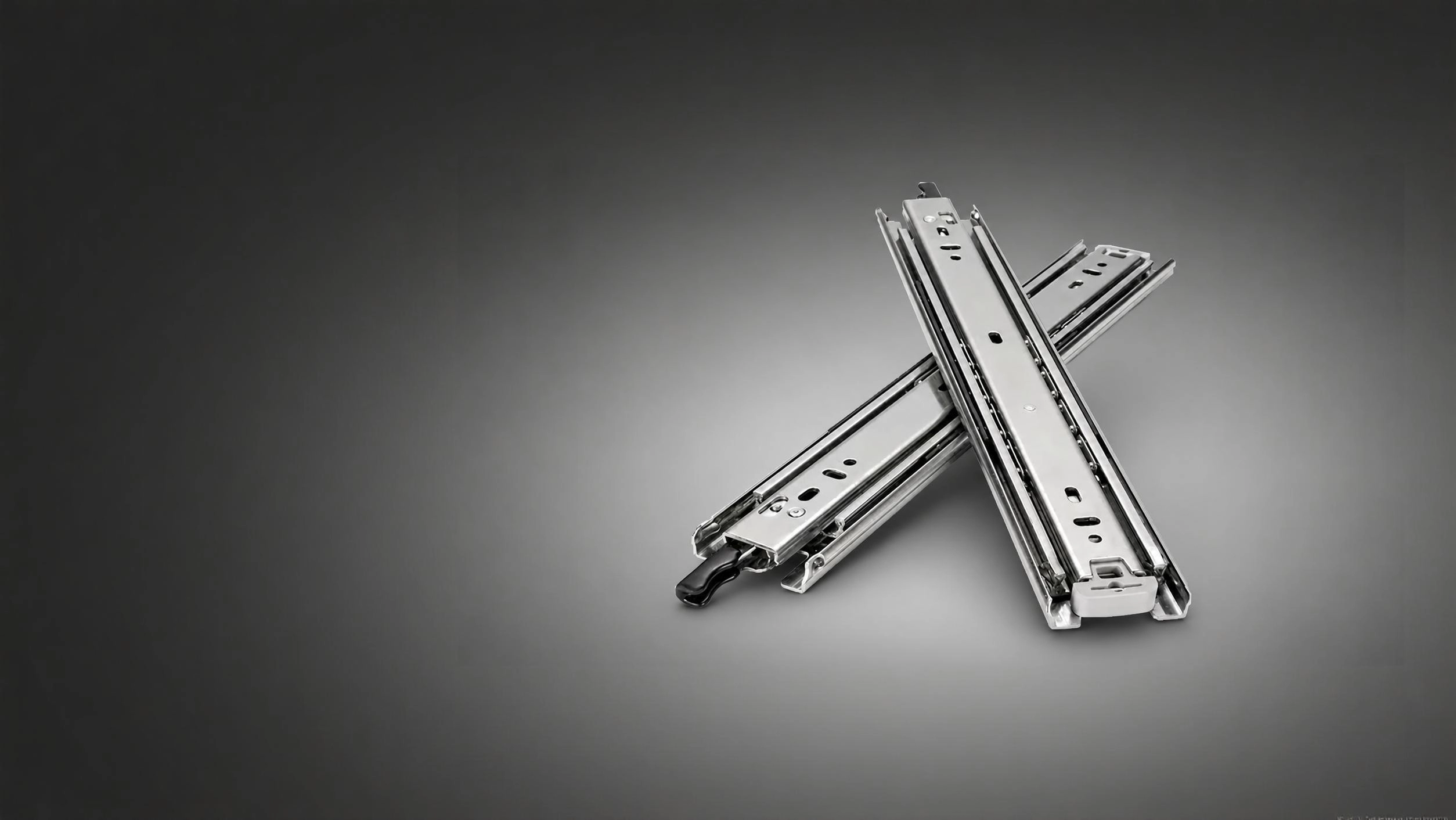

Heavy-Duty Drawer Slides
100lb–250lb full-extension ball bearing slides with optional locking
Built for Demanding Loads

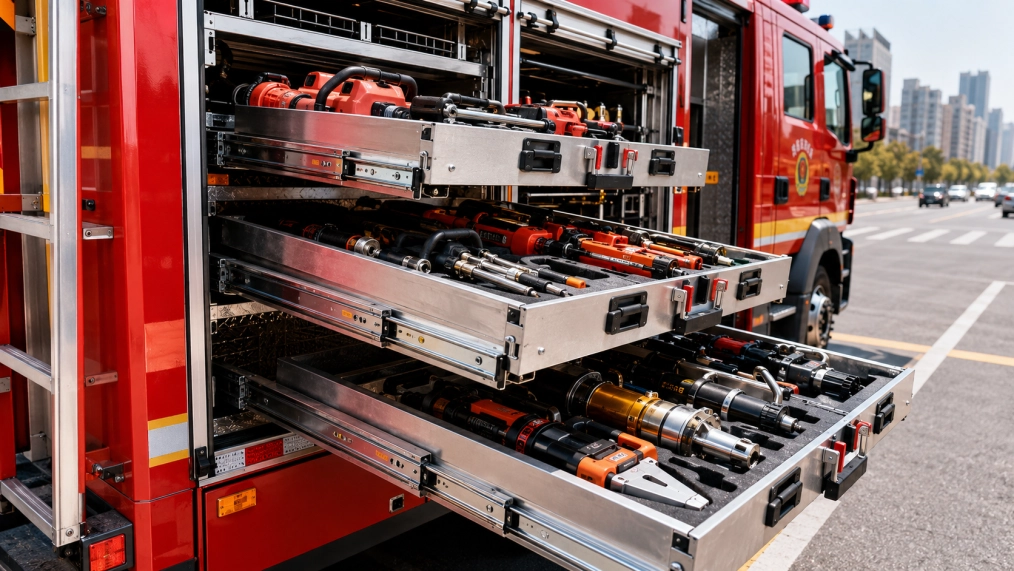

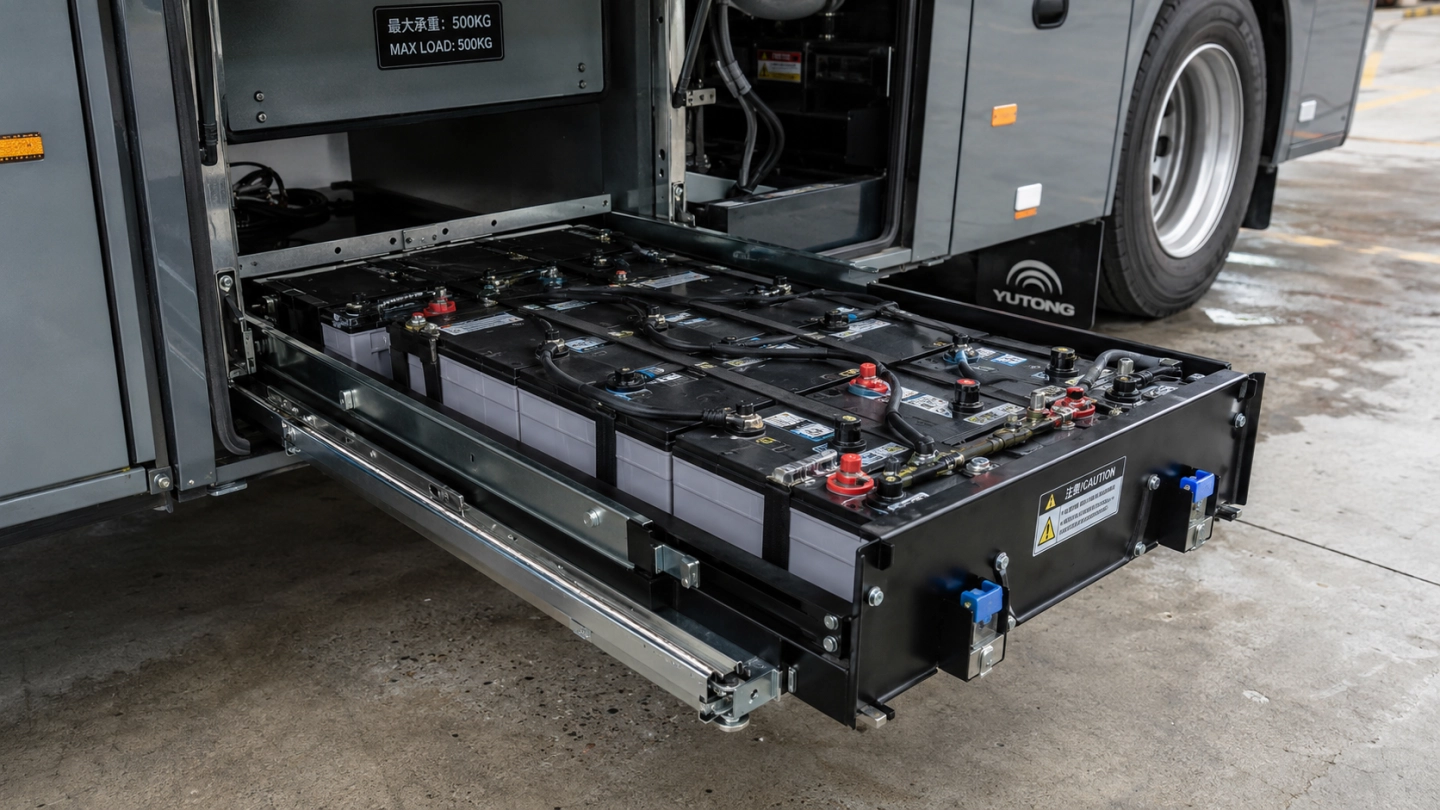

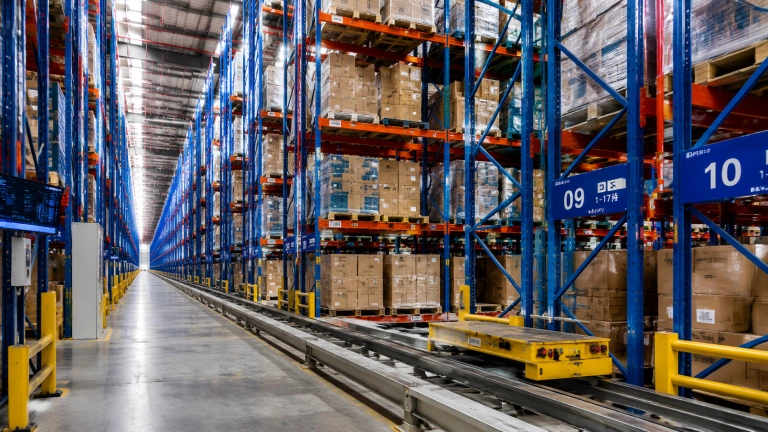

BWD heavy-duty drawer slides are engineered for sustained loads from 100 lb (45 kg) to 500 lb (227 kg) per pair, targeting industrial cabinets, truck/RV storage, warehouse bin systems, and CNC machine drawers. Every slide uses cold-rolled carbon steel rails (SPCC/Q235) with hardened ball bearing raceways rated for 50,000+ full-extension cycles under maximum load, verified via in-house BHMA A156.9 cycle testing.
Key features: full-extension or over-travel (105-115%); optional dual lock-in/lock-out; zinc plating (8+ micron) or e-coat (salt spray 72+ h per ASTM B117). Rail thickness 1.0-1.5 mm by load class; lengths 250-900 mm with custom lengths available.
Selection: match load rating to drawer weight with 25%+ headroom. Side-mount for widest compatibility; bottom-mount when interior width is critical. For vibration environments (vehicles, machinery), always specify locking variants.
Key features: full-extension or over-travel (105-115%); optional dual lock-in/lock-out; zinc plating (8+ micron) or e-coat (salt spray 72+ h per ASTM B117). Rail thickness 1.0-1.5 mm by load class; lengths 250-900 mm with custom lengths available.
Selection: match load rating to drawer weight with 25%+ headroom. Side-mount for widest compatibility; bottom-mount when interior width is critical. For vibration environments (vehicles, machinery), always specify locking variants.
Heavy-Duty Models

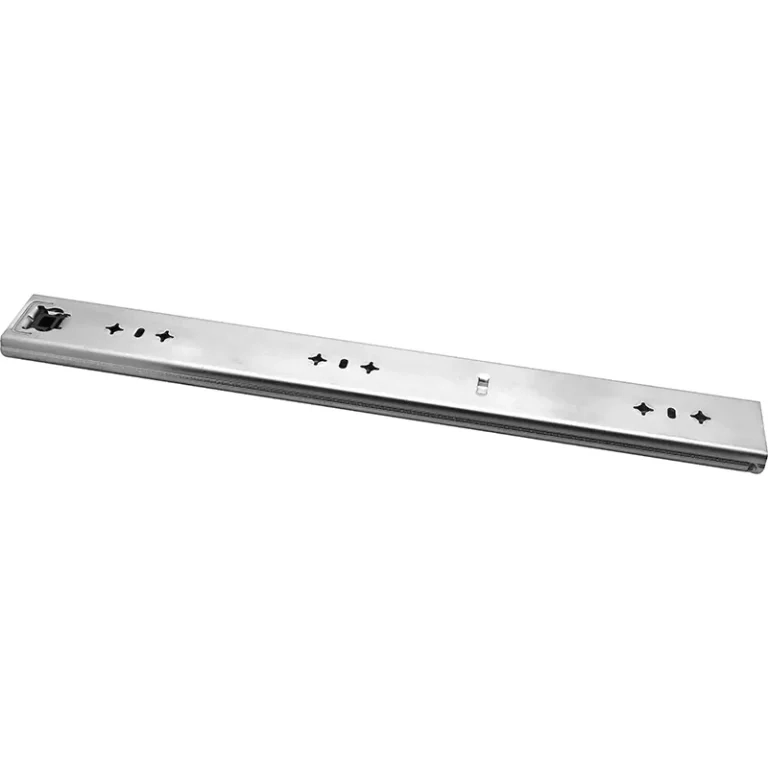

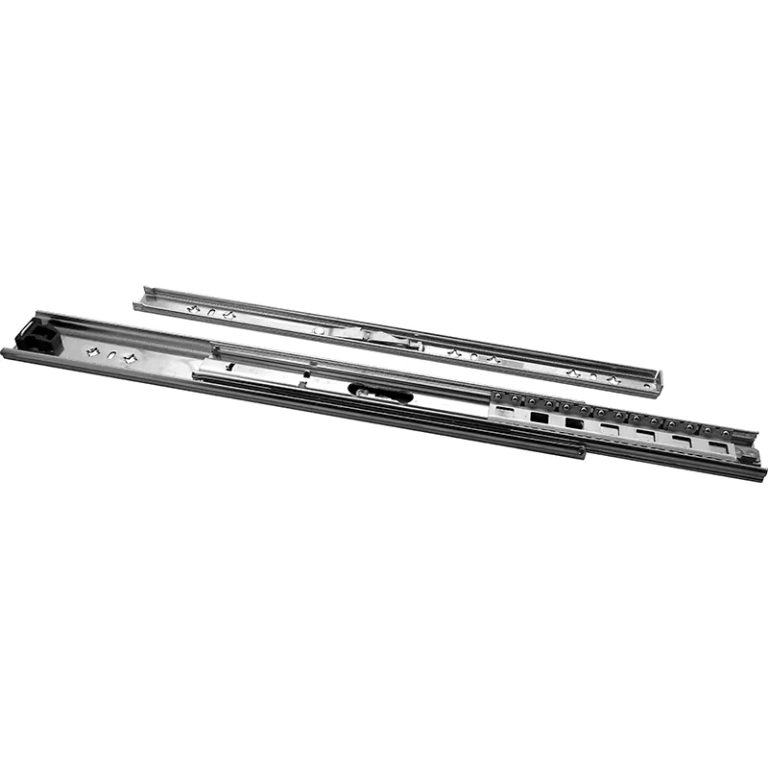

250 LB Capacity Ball Bearing Side Mount Full Extension Heavy Duty Drawer Slides

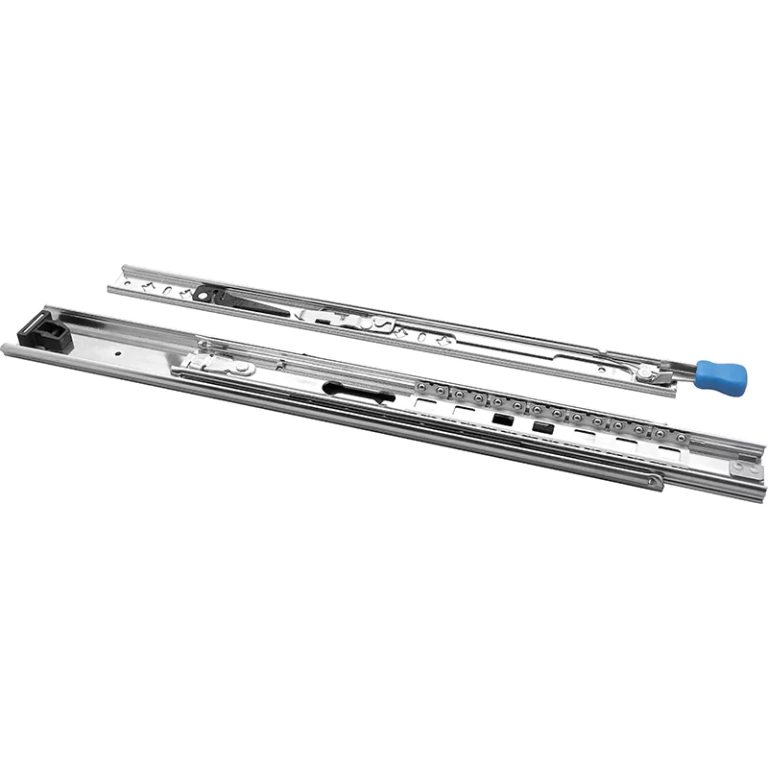

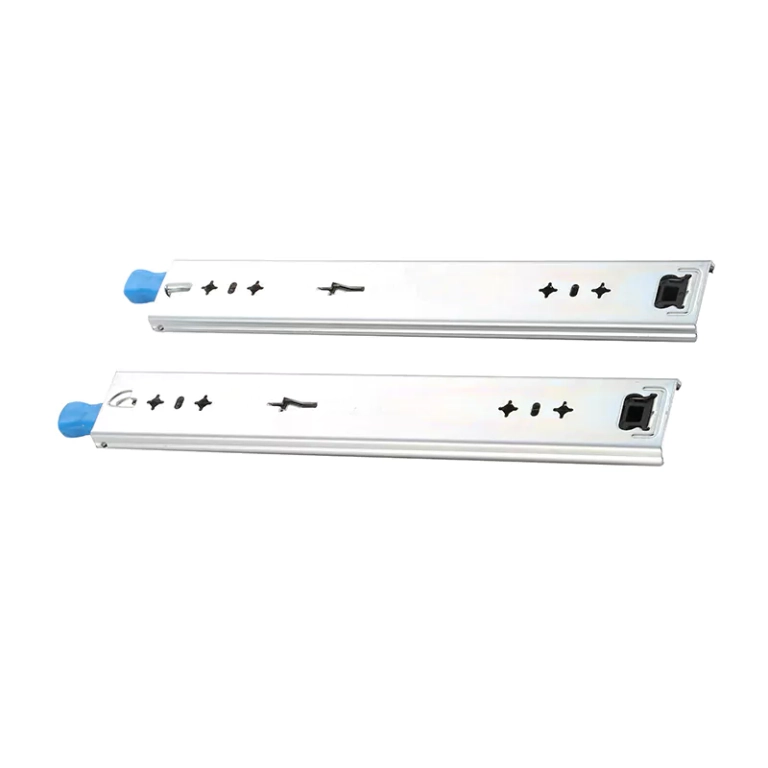

Heavy Duty Locking Drawer Slides Full Extension Runners With Lock Side Mount Ball Bearing Rails Track Glides 250Lbs

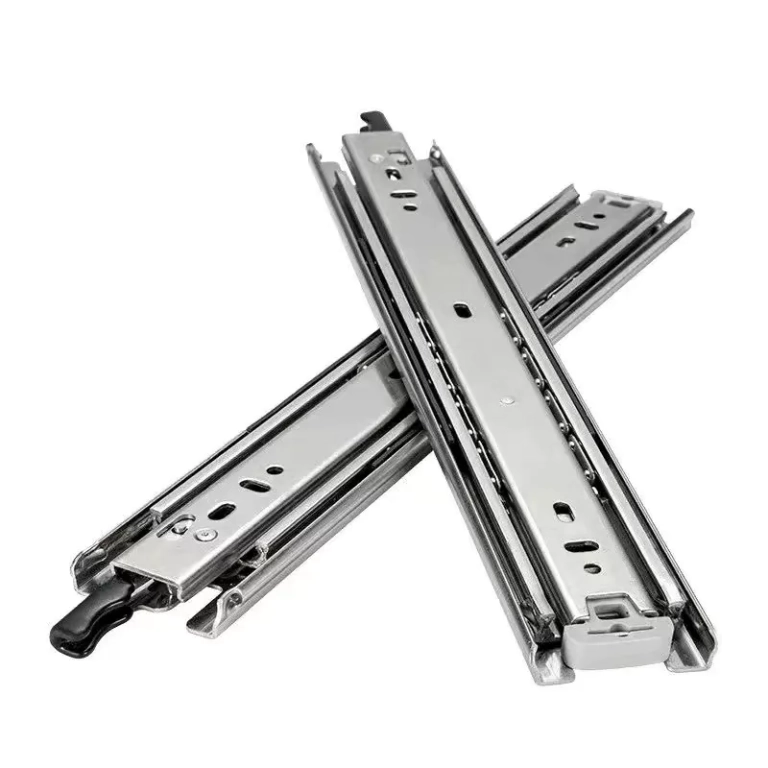

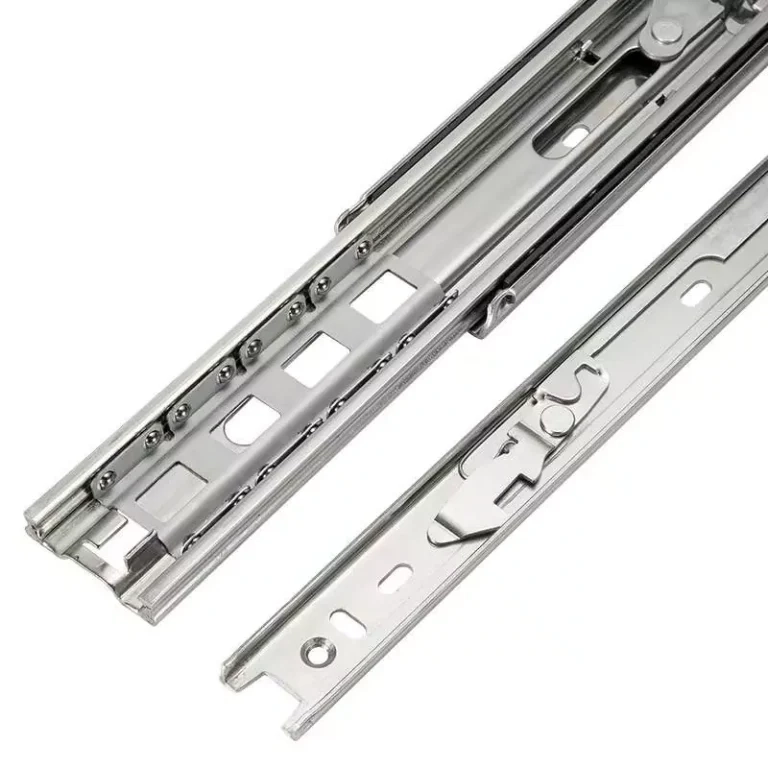

150lb Capacity Drawer Slides with Lock Full Extension Locking Ball Bearing Side Mount Glides Runners

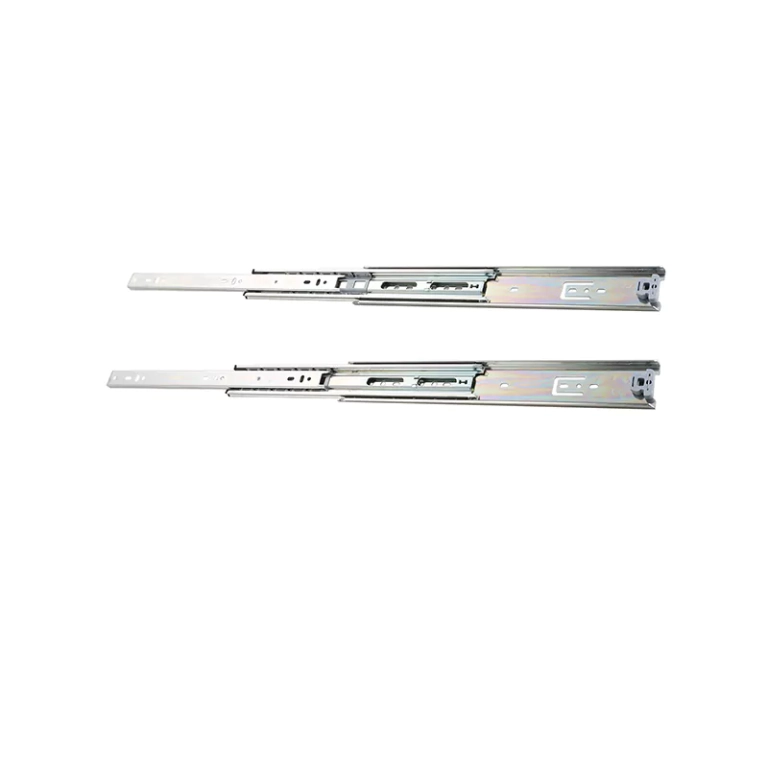

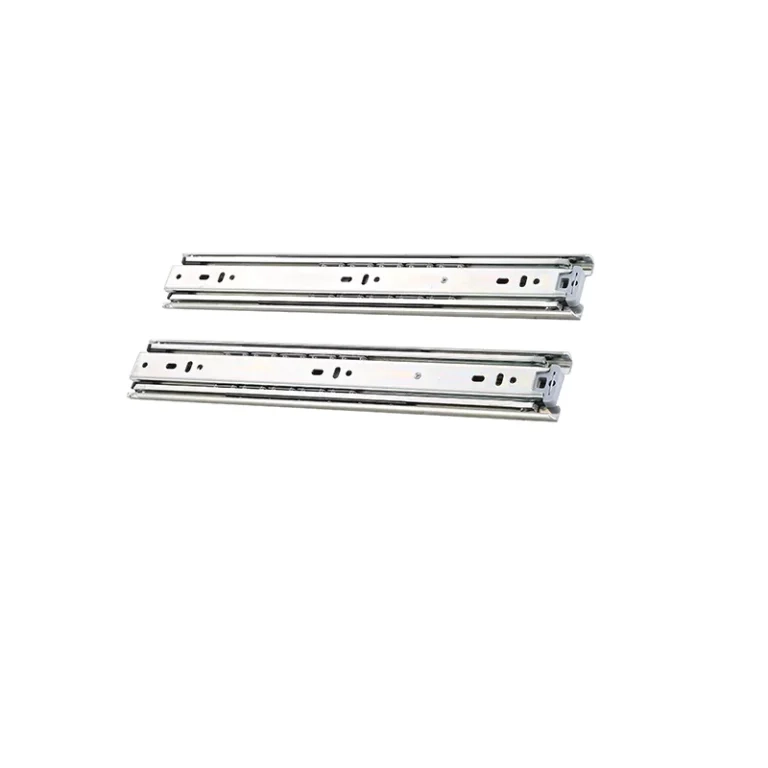

150lb Capacity Drawer Slides Full Extension Ball Bearing Side Mount Glides Runners

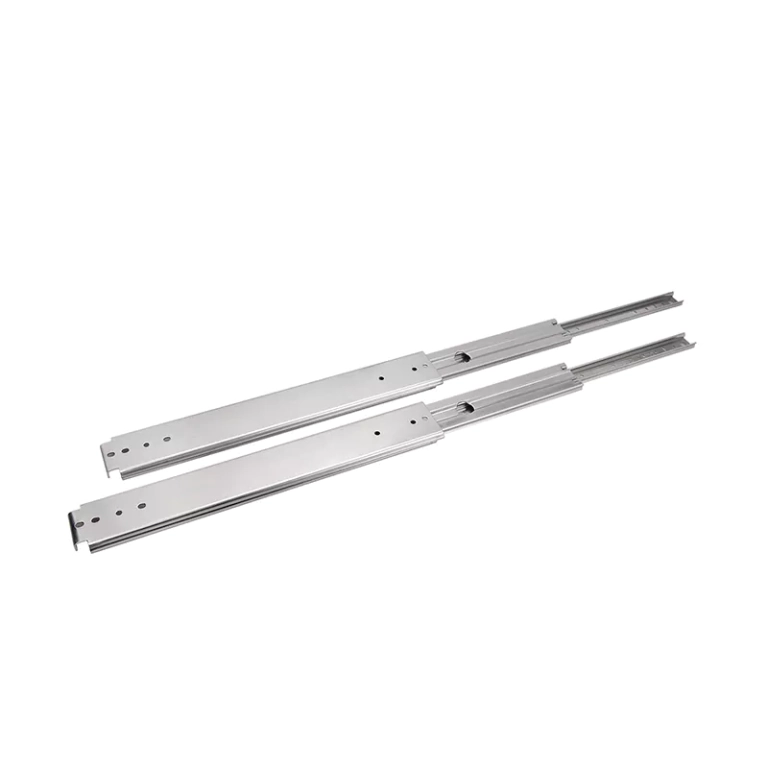

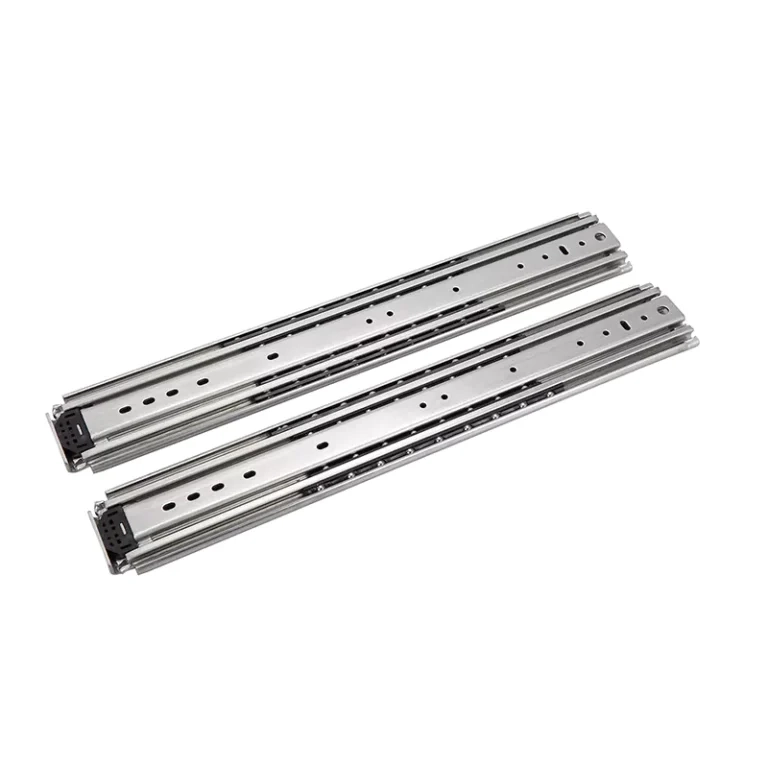

500 Lb Heavy Duty Full Extension 3 Fold Ball Bearing Drawer Slide Rails

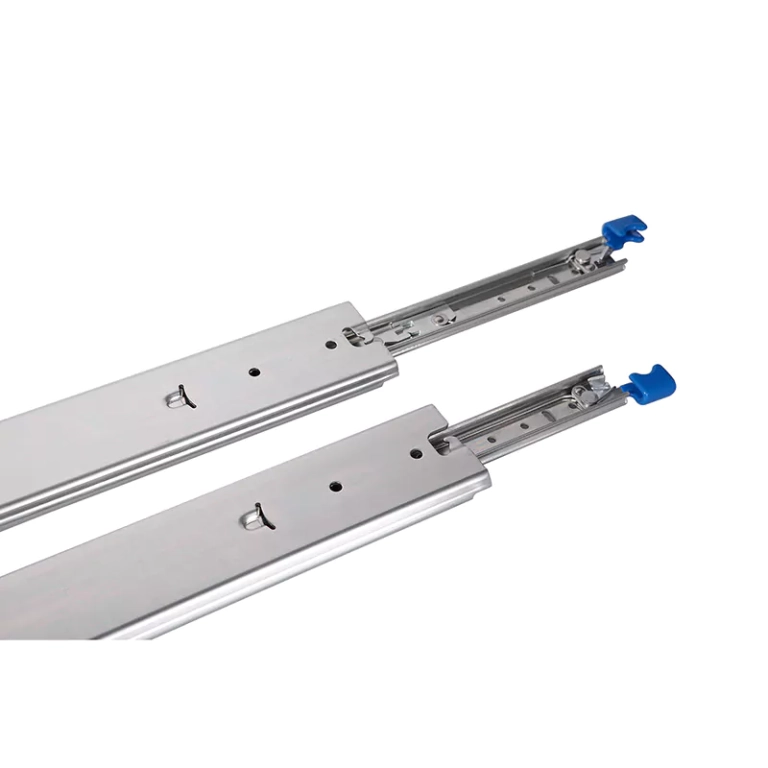

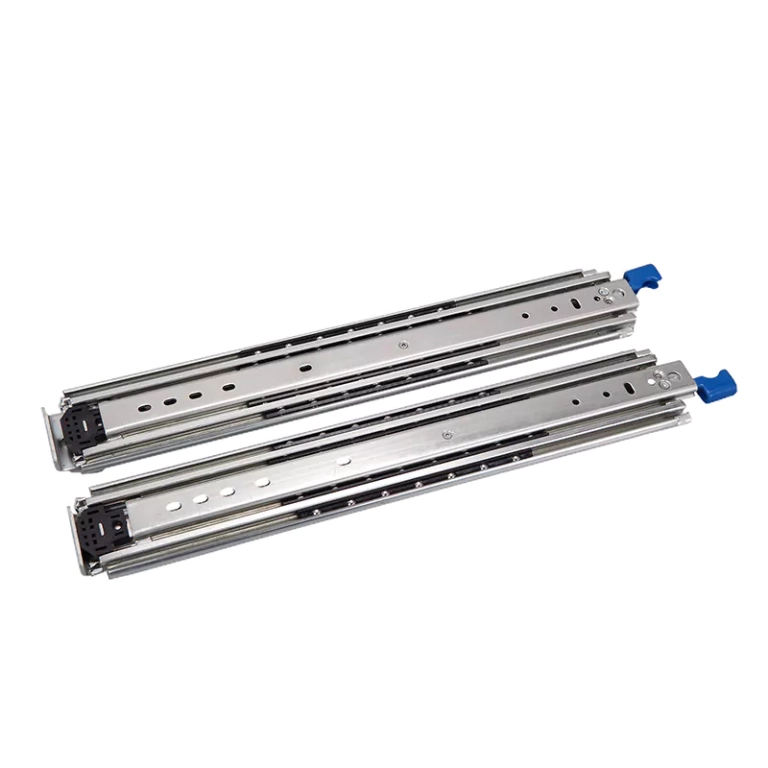

Heavy Duty Drawer Slides with Lock Side Mount Full Extension Ball Bearing Industrial Locking Rail
