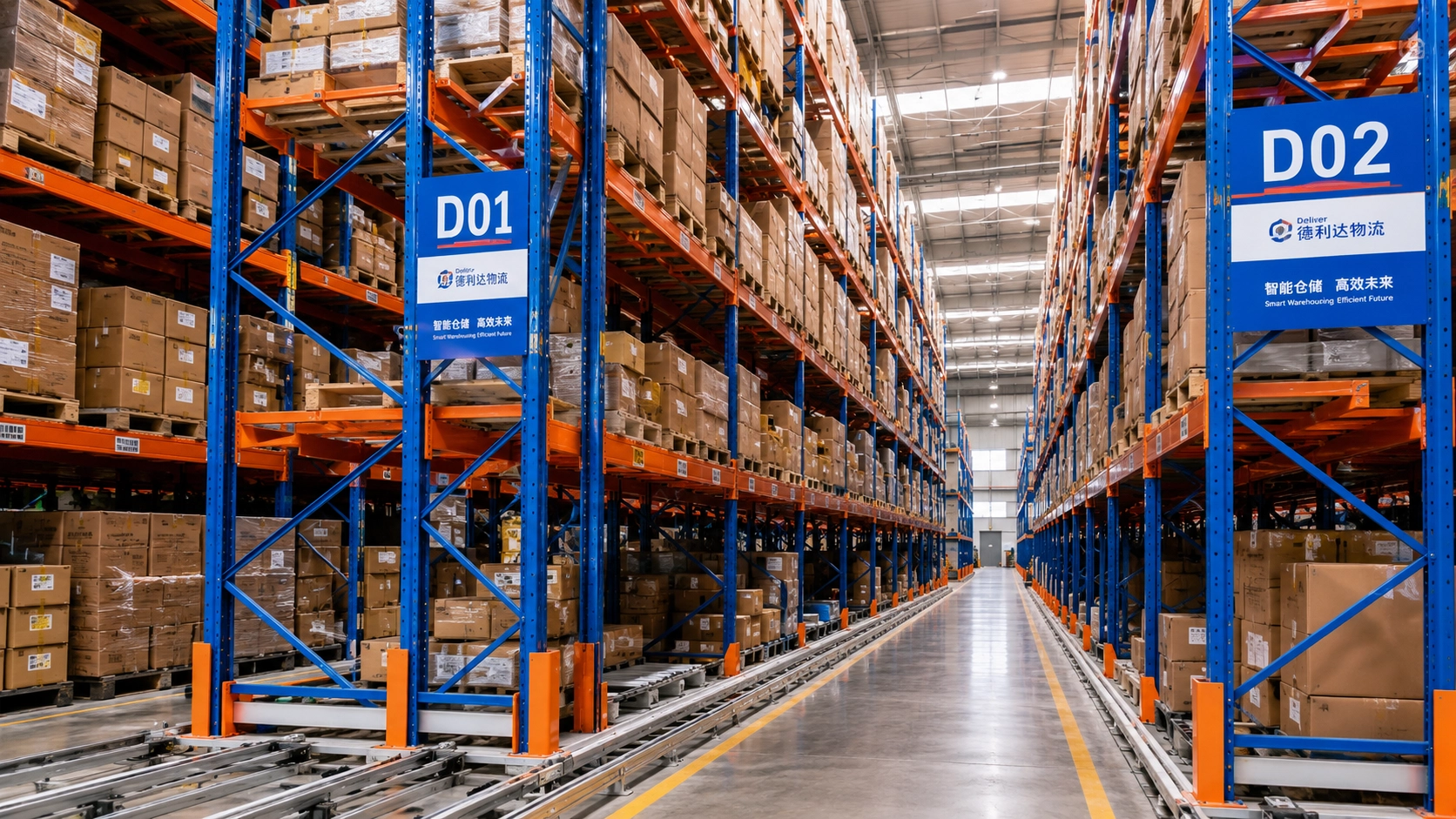

Warehouse Drawer Slides & Glides
Storage Density Demands
Load profile: most drawers carry 30-80 kg of small parts. Slides must support this while allowing fast one-handed pull at <40 N for picker ergonomics. Full-extension mandatory for all bin positions. Auto-return (self-closing) often requested for robotic systems.
BWD serves with 150 lb and 250 lb heavy-duty series configured with: full-extension, optional auto-return spring, e-coat finish (200+ h salt spray for non-climate-controlled warehouses), custom lengths 400-800 mm. For AS/RS: consistent insertion force (+/-5 N tolerance) for robotic mechanisms.
Certifications: FM Global (insurance compliance), OSHA ergonomics, EN 14744 (European medium/heavy shelving).
Technical Selection Guide
Calculate Cycle Life Requirement
Annual cycles = picks/day × 365. Example: 100 picks/day = 36,500/year. For 5-year life: need 182,500+ cycles. BWD heavy-duty rated 50,000 at full load = 200,000+ at typical 60% utilization.
Match Drawer Depth
Warehouse cabinets use 500–750 mm deep drawers. Slide length must match within 10 mm for full-extension access to the last bin row. Stock lengths available or custom-cut on MOQ 500.
Select Locking Mode
Manual pick: lock-out only (hold open for two-hand access). Mobile storage: dual lock (hold-closed for transport, hold-open for picking). AS/RS robotic: no locking needed — robot controls drawer position.
Environment & Finish
Climate-controlled warehouse: zinc plating adequate. Non-climate or outdoor staging: e-coat required. Cold storage (-20°C): e-coat + low-temperature synthetic grease specification.
Integration & Replacement
VLM/carousel compatibility: pre-drilled mounting patterns for Kardex, Hanel, Modula. Disconnect feature enables <5 minute per-drawer slide replacement without disassembling the storage unit.
Calculate Cycle Life Requirement
Annual cycles = picks/day × 365. Example: 100 picks/day = 36,500/year. For 5-year life: need 182,500+ cycles. BWD heavy-duty rated 50,000 at full load = 200,000+ at typical 60% utilization.
Match Drawer Depth
Warehouse cabinets use 500–750 mm deep drawers. Slide length must match within 10 mm for full-extension access to the last bin row. Stock lengths available or custom-cut on MOQ 500.
Select Locking Mode
Manual pick: lock-out only (hold open for two-hand access). Mobile storage: dual lock (hold-closed for transport, hold-open for picking). AS/RS robotic: no locking needed — robot controls drawer position.
Environment & Finish
Climate-controlled warehouse: zinc plating adequate. Non-climate or outdoor staging: e-coat required. Cold storage (-20°C): e-coat + low-temperature synthetic grease specification.
Integration & Replacement
VLM/carousel compatibility: pre-drilled mounting patterns for Kardex, Hanel, Modula. Disconnect feature enables <5 minute per-drawer slide replacement without disassembling the storage unit.
Combo Solution

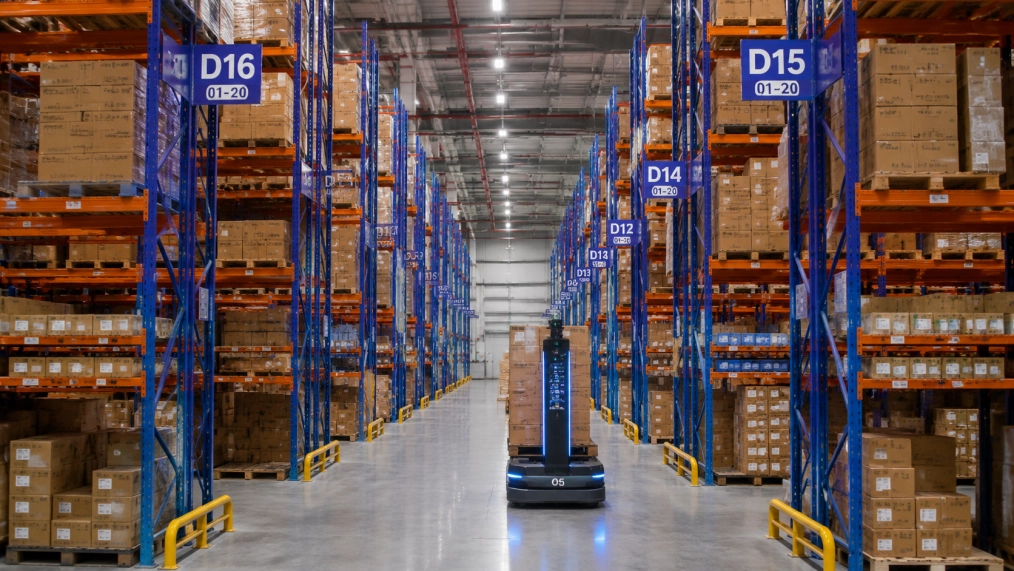

Heavy-Duty for Warehousing
Warehouse Slide Deployment Process
System Assessment
Identify storage system type (VLM, carousel, manual tower), drawer count, picks/day per drawer, loaded weight, and operating environment. BWD calculates required cycle life.
Model Selection & Life Calculation
BWD recommends model based on load + cycle requirement. Provides projected replacement schedule and total cost of ownership comparison vs current slides.
Pilot Installation
Install on highest-frequency drawers first (10-20 units). Monitor performance for 30-60 days. Measure actual cycle count, pull force consistency, and operator feedback.
Full Deployment
Roll out across all drawers. BWD supplies pre-assembled kits with system-specific mounting brackets. Installation documentation for maintenance team training.
Lifecycle Management
BWD provides preventive replacement schedule based on actual usage data. Bulk replacement kits shipped proactively before end-of-life. Disconnect feature enables <5 minute per-drawer replacement.
