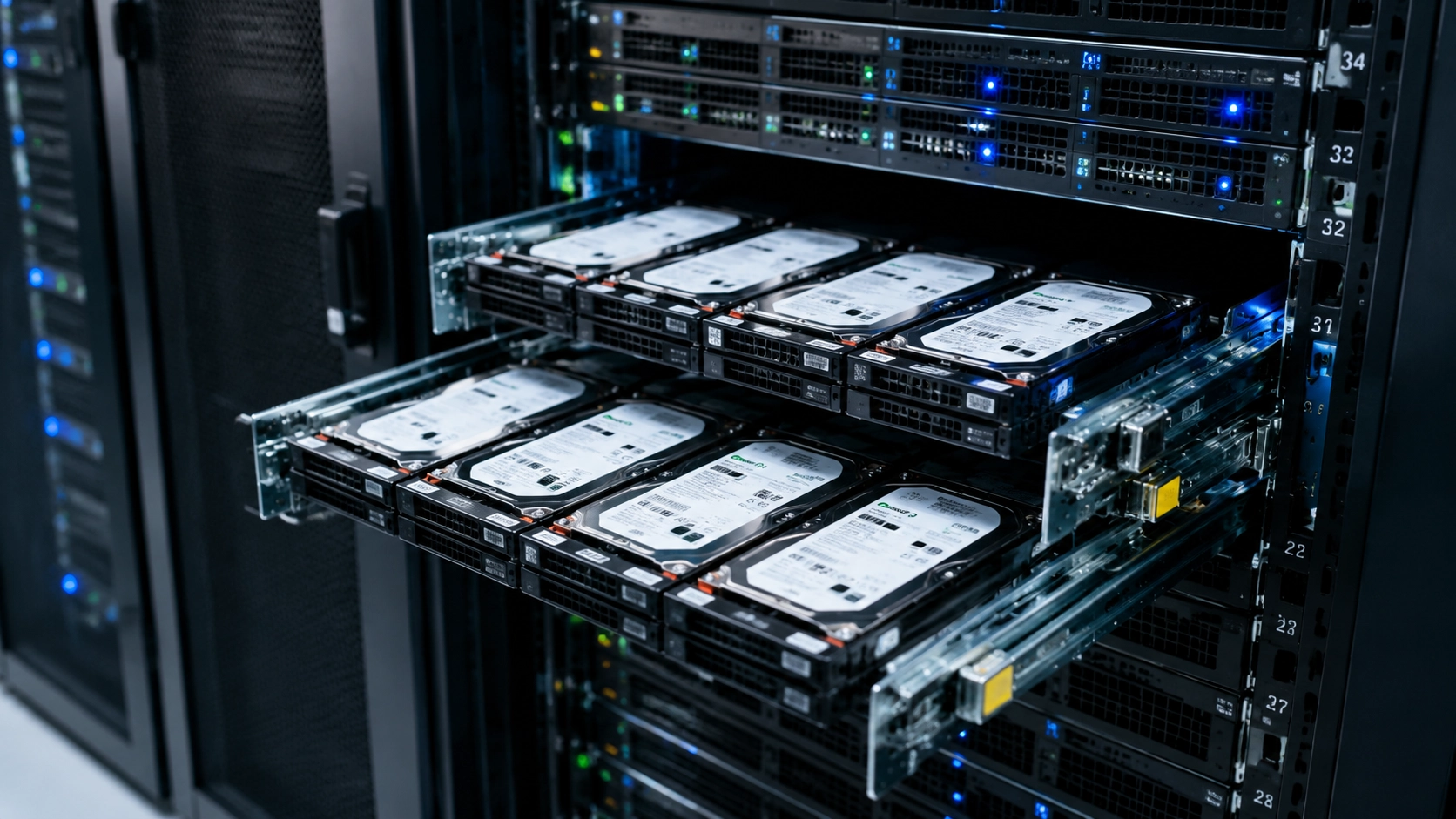

Server Rack & IT Enclosure Slide Rails
Maintenance-Ready Slide Rails
Critical specs: load 50-250 lb/pair (loaded 2U server: 25-40 kg; 4U storage: up to 60 kg), tool-less snap-in mounting to square/round-hole posts, positive lock-out at full extension, lock-in for seismic (NEBS GR-63-CORE Zone 4), and smooth travel to avoid jarring live servers.
BWD server rail series: 1.2 mm cold-rolled steel, 3-section ball bearing full-extension, tool-less quick-mount (Dell/HPE/Supermicro compatible), depth adjustable 600-900 mm, cable management arm compatible, zinc + clear chromate finish.
For hyperscale: lightweight variant (0.8 mm steel + aluminum) reduces per-server weight by 30% - significant at thousands of servers.
Technical Selection Guide
Determine Form Factor & Weight
1U (15–20 kg): 100 lb rail. 2U (20–35 kg): 150 lb rail. 4U storage (35–60 kg): 250 lb rail. GPU compute nodes can exceed 40 kg in 2U — always weigh actual config with all accelerators and drives installed.
Identify Rack Type
Square-hole (Dell/HPE standard), round-hole (legacy Telco), or threaded (older installations). BWD universal bracket adapts to all three with a single SKU.
Confirm Depth & Adjustment
Standard racks 600–1000 mm. BWD slides adjust 680–880 mm tool-less. Short-depth variant available for 450 mm networking/switch racks.
Seismic Requirement
California Zone 4, Japan, Taiwan, New Zealand: NEBS GR-63-CORE required. BWD seismic kit includes anti-walk brackets and reinforced retention clips.
Cable Management & Serviceability
CMA-compatible variant includes intermediate stop at 80% extension for cable routing. Overridable for full-extension maintenance. Ball-bearing disconnect for hot-swap server removal.
Determine Form Factor & Weight
1U (15–20 kg): 100 lb rail. 2U (20–35 kg): 150 lb rail. 4U storage (35–60 kg): 250 lb rail. GPU compute nodes can exceed 40 kg in 2U — always weigh actual config with all accelerators and drives installed.
Identify Rack Type
Square-hole (Dell/HPE standard), round-hole (legacy Telco), or threaded (older installations). BWD universal bracket adapts to all three with a single SKU.
Confirm Depth & Adjustment
Standard racks 600–1000 mm. BWD slides adjust 680–880 mm tool-less. Short-depth variant available for 450 mm networking/switch racks.
Seismic Requirement
California Zone 4, Japan, Taiwan, New Zealand: NEBS GR-63-CORE required. BWD seismic kit includes anti-walk brackets and reinforced retention clips.
Cable Management & Serviceability
CMA-compatible variant includes intermediate stop at 80% extension for cable routing. Overridable for full-extension maintenance. Ball-bearing disconnect for hot-swap server removal.
Combo Solution

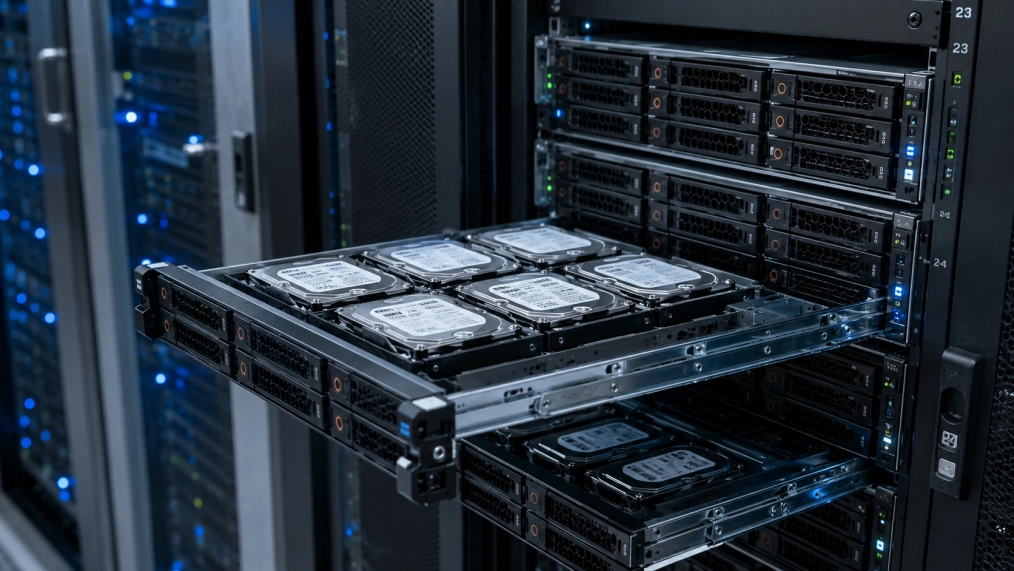

Locking Slides for Server Racks
Data Center Rail Kit Procurement
Compatibility Verification
Confirm server chassis model, rack type (square/round/threaded hole), rack depth, and seismic requirement. BWD verifies fit against our compatibility database within 24 hours.
Sample & Fit Test
Receive sample rail kit with universal brackets. Install in target rack with target server. Verify: smooth extension, lock-out engagement, CMA clearance, and depth adjustment range.
Seismic Qualification
If NEBS GR-63-CORE required, BWD provides zone-specific qualification test report. For unique chassis configurations, application-specific shake-table testing available.
Volume Pricing & Logistics
Hyperscale pricing based on annual commitment. Delivery to data center construction site (not just warehouse). Packaging optimized for high-volume rack installation (bulk trays, no individual boxing).
Ongoing Support
Dedicated technical contact for design changes, new server model qualification, and field issue resolution. Spare parts program for installed base maintenance.
Compatibility Verification
Confirm server chassis model, rack type (square/round/threaded hole), rack depth, and seismic requirement. BWD verifies fit against our compatibility database within 24 hours.
Sample & Fit Test
Receive sample rail kit with universal brackets. Install in target rack with target server. Verify: smooth extension, lock-out engagement, CMA clearance, and depth adjustment range.
Seismic Qualification
If NEBS GR-63-CORE required, BWD provides zone-specific qualification test report. For unique chassis configurations, application-specific shake-table testing available.
Volume Pricing & Logistics
Hyperscale pricing based on annual commitment. Delivery to data center construction site (not just warehouse). Packaging optimized for high-volume rack installation (bulk trays, no individual boxing).
Ongoing Support
Dedicated technical contact for design changes, new server model qualification, and field issue resolution. Spare parts program for installed base maintenance.
