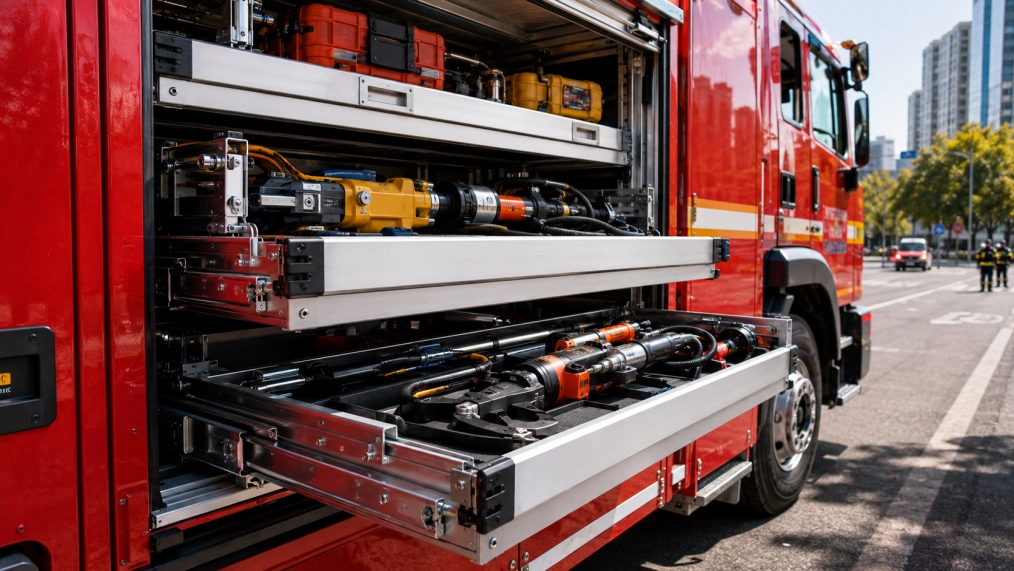

Heavy-Duty Drawer Slides for Truck & RV
250lb locking ball bearing slides — vehicle-proven

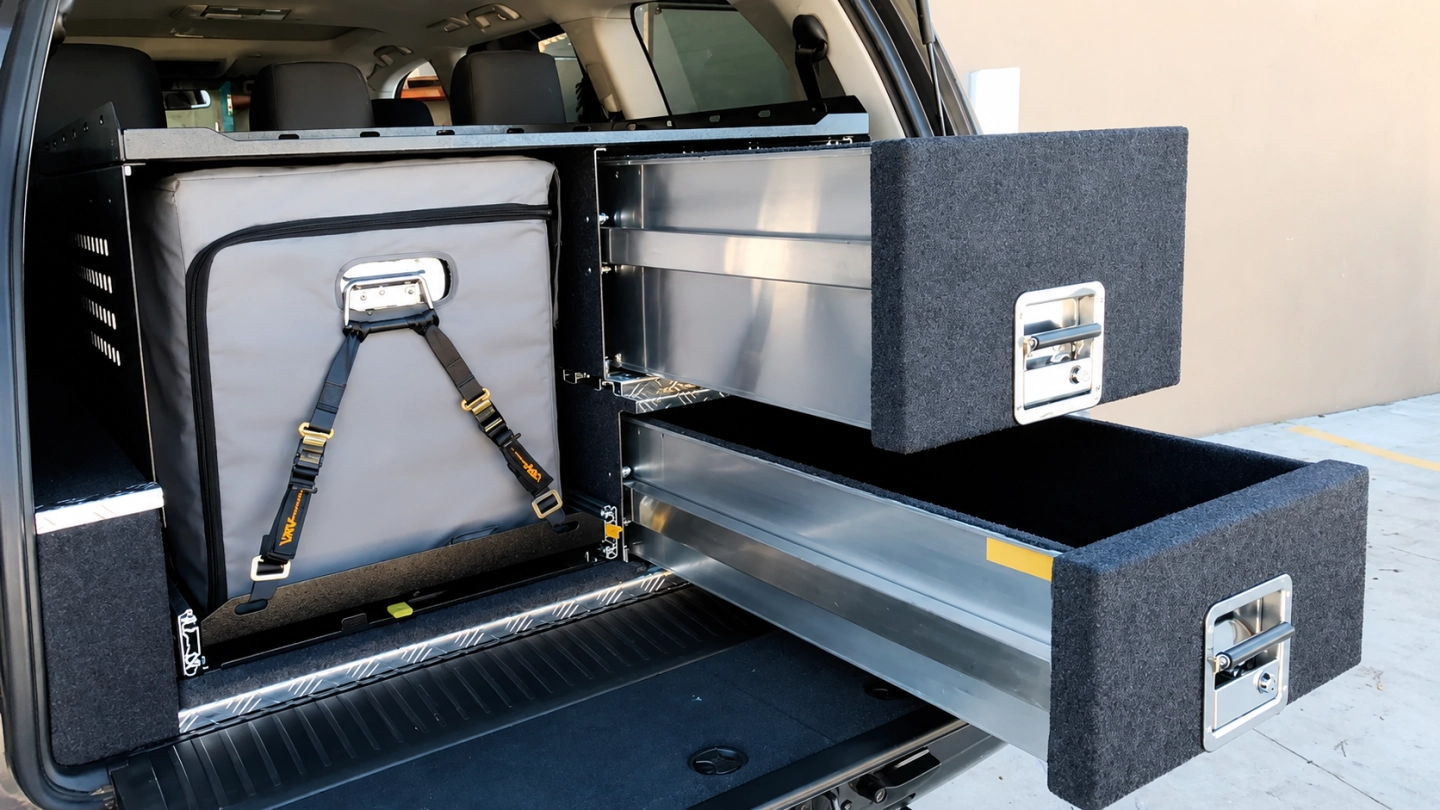

The Vehicle Drawer Challenge
Truck and RV drawers face punishment no other application matches: continuous road vibration (5-200 Hz, 0.5-2 g RMS per MIL-STD-810G), shock up to 10 g from potholes, temperature cycling -35C to +70C, simultaneous road salt/rain/dust/UV exposure, and the absolute requirement that loaded drawers stay locked during transit - because a 100 lb drawer flying open at highway speed is a lethal projectile.
Standard slides fail for compounding reasons: zinc plating (72 h salt spray) = barely 18 months in salt-belt service. Petroleum grease sluggish below -10C, thin above +60C. Friction hold-closed mechanisms release under sustained vibration ("walk-out" within weeks). Furniture-grade cycle ratings ignore vibration micro-cycling that accumulates 10,000 equivalent cycles/month in a work truck.
Standard slides fail for compounding reasons: zinc plating (72 h salt spray) = barely 18 months in salt-belt service. Petroleum grease sluggish below -10C, thin above +60C. Friction hold-closed mechanisms release under sustained vibration ("walk-out" within weeks). Furniture-grade cycle ratings ignore vibration micro-cycling that accumulates 10,000 equivalent cycles/month in a work truck.
Why BWD Heavy-Duty Locking Slides
BWD truck/RV series is purpose-engineered for vehicle service, not adapted from furniture:
Structure: 1.5 mm cold-rolled steel with reinforced bends at stress points. Through-hardened raceways (HRC 58-62) resist vibration brinelling - the micro-denting causing flat spots and increased drag.
Corrosion: Dual-layer e-coat (epoxy primer 15 micron) + zinc (8 micron) = 200+ hours salt spray (ASTM B117) = 5+ years salt-belt service, roughly 3x zinc-only.
Locking: Positive-engagement spring-loaded with separate lock-in (transit) and lock-out (service). Force exceeds 30 g forward deceleration per SAE J1455 - drawers stay closed even in collision events exceeding FMVSS 208.
Lubrication: Synthetic polyurea grease -40C to +120C, 2x oxidation stability of petroleum. No re-lubrication over service life.
Certification: MIL-STD-810G Method 514.7 Category 24 (wheeled vehicle). 250 lb per pair with 1.5x safety factor static.
Structure: 1.5 mm cold-rolled steel with reinforced bends at stress points. Through-hardened raceways (HRC 58-62) resist vibration brinelling - the micro-denting causing flat spots and increased drag.
Corrosion: Dual-layer e-coat (epoxy primer 15 micron) + zinc (8 micron) = 200+ hours salt spray (ASTM B117) = 5+ years salt-belt service, roughly 3x zinc-only.
Locking: Positive-engagement spring-loaded with separate lock-in (transit) and lock-out (service). Force exceeds 30 g forward deceleration per SAE J1455 - drawers stay closed even in collision events exceeding FMVSS 208.
Lubrication: Synthetic polyurea grease -40C to +120C, 2x oxidation stability of petroleum. No re-lubrication over service life.
Certification: MIL-STD-810G Method 514.7 Category 24 (wheeled vehicle). 250 lb per pair with 1.5x safety factor static.
Recommended Models
FAQ
Related Applications
You May Also Need
Selected Case Studies
Detailed Selection Notes
Selecting heavy-duty slides for truck/RV requires matching four variables:
1. Loaded weight to rating: Weigh drawer fully loaded. Apply 1.5x safety factor (not 1.25x for stationary, because dynamic vehicle loads add 20-50% to static weight). Example: 60 lb loaded = need 90+ lb rated = specify 100 lb model.
2. Drawer depth to slide length: Match within 5 mm. Typical truck drawers 350-600 mm. BWD stocks 350, 400, 450, 500, 550, 600 mm; custom on MOQ 200 pairs.

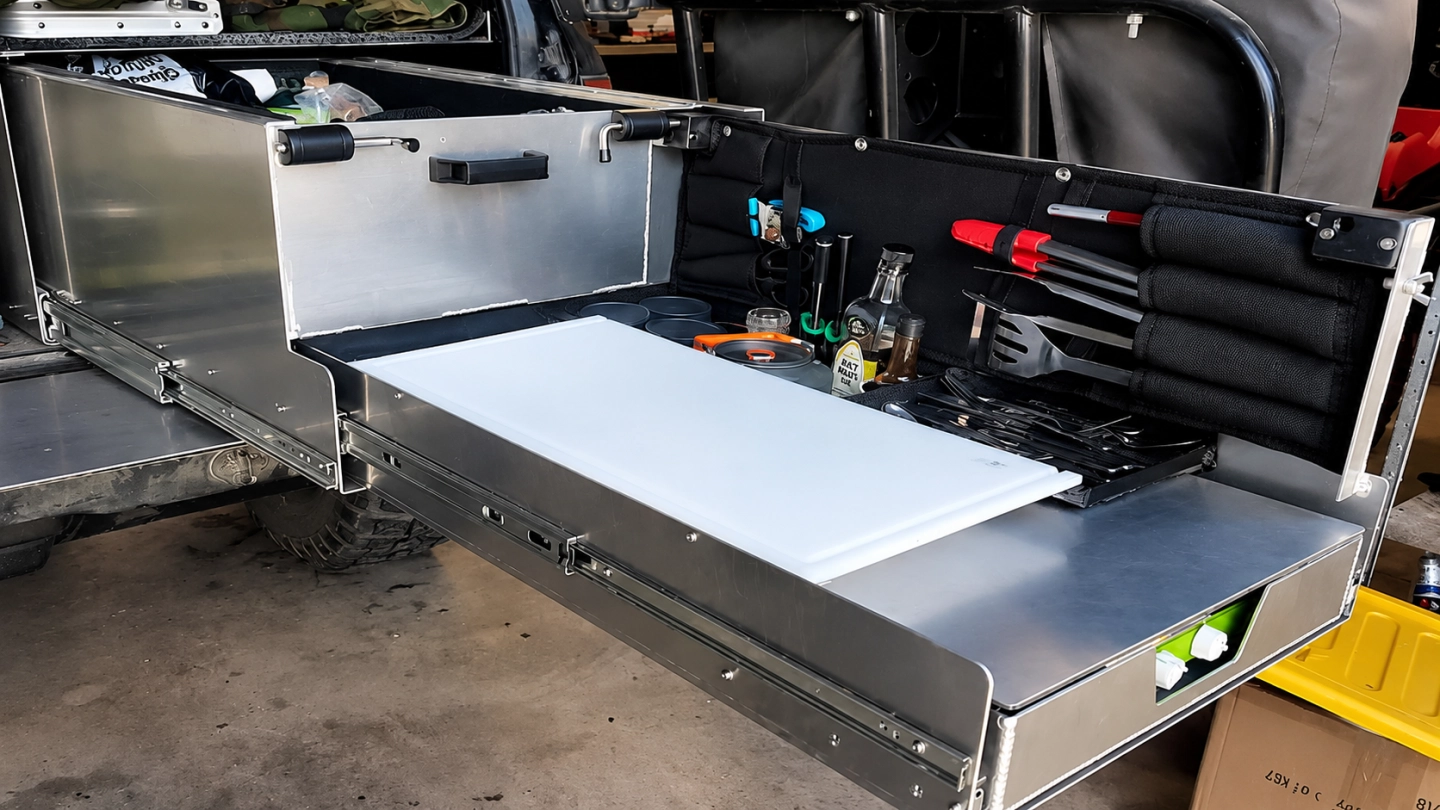

3. Locking configuration: Road-only service trucks = dual lock standard. Off-road (mining, forestry) = dual lock + secondary latch (hasp bracket supplied). RV kitchen = soft-close + lock-in combination preferred.
4. Mounting orientation: Horizontal (standard toolbox) = side-mount. Vertical (tilt-out panels, ambulance) = verify static rating in vertical (typically 60% of horizontal). Inverted (overhead van storage) = consult BWD engineering for mounting validation.
1. Loaded weight to rating: Weigh drawer fully loaded. Apply 1.5x safety factor (not 1.25x for stationary, because dynamic vehicle loads add 20-50% to static weight). Example: 60 lb loaded = need 90+ lb rated = specify 100 lb model.
2. Drawer depth to slide length: Match within 5 mm. Typical truck drawers 350-600 mm. BWD stocks 350, 400, 450, 500, 550, 600 mm; custom on MOQ 200 pairs.
3. Locking configuration: Road-only service trucks = dual lock standard. Off-road (mining, forestry) = dual lock + secondary latch (hasp bracket supplied). RV kitchen = soft-close + lock-in combination preferred.
4. Mounting orientation: Horizontal (standard toolbox) = side-mount. Vertical (tilt-out panels, ambulance) = verify static rating in vertical (typically 60% of horizontal). Inverted (overhead van storage) = consult BWD engineering for mounting validation.
