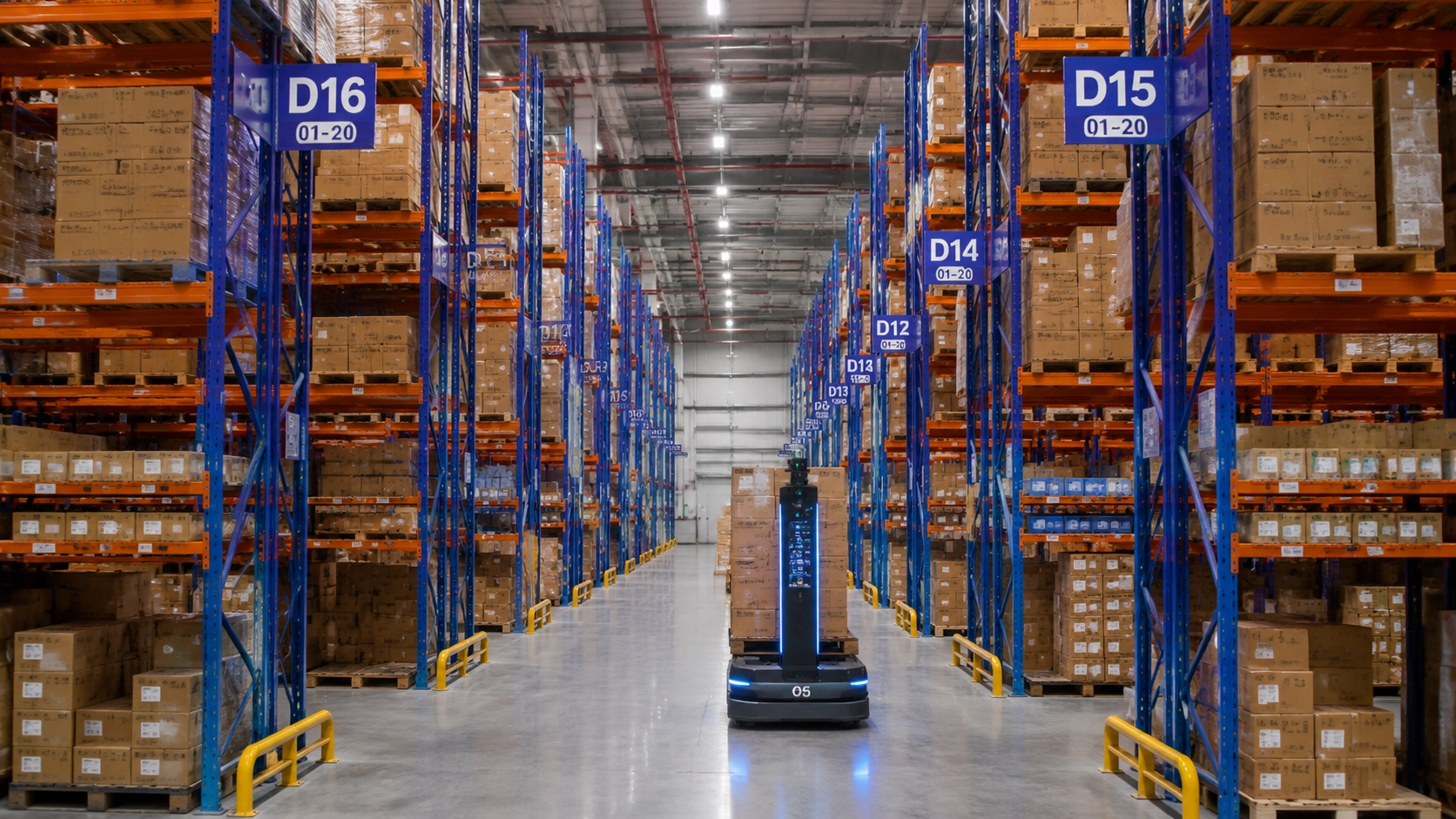

Heavy-Duty Drawer Slides for Warehousing
Pick-Heavy Environments

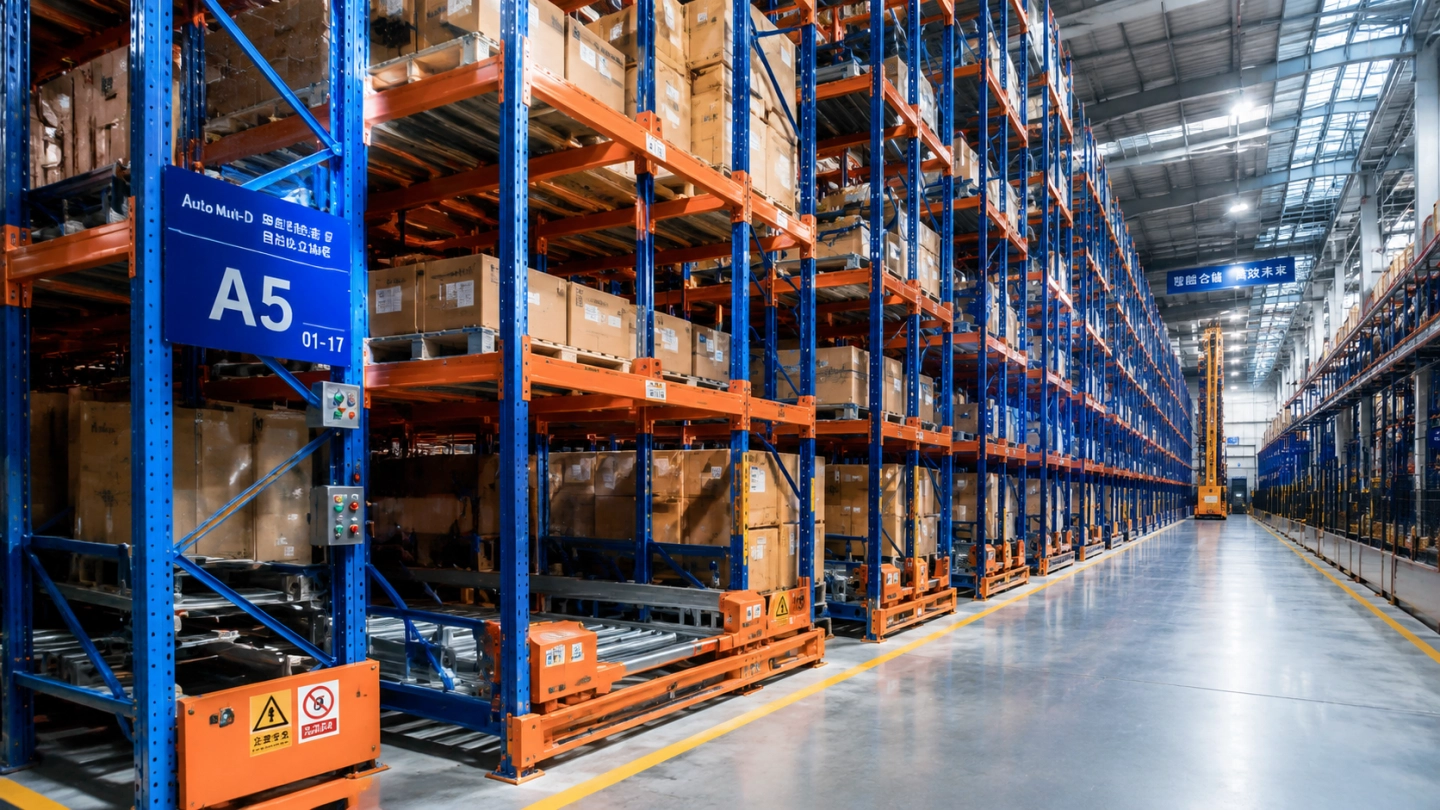

Modern automated and semi-automated warehouses use drawer-based bin storage (vertical lift modules, horizontal carousels, and manual dense-storage towers) with thousands of daily picks per drawer. Slides face a unique stress profile: moderate-to-heavy loads (30-80 kg per drawer), extreme cycling frequency (50-200 times/day = 18,000-73,000 cycles/year), rapid open/close velocity (pickers moving fast to hit productivity targets), and environments ranging from climate-controlled fulfillment centers to non-climate-controlled staging areas where humidity and temperature swing freely.
The combination of high load + high frequency is what destroys standard slides. A 50,000-cycle rating at full load sounds generous for residential use (15+ years at 10/day), but in a warehouse doing 100 picks/day, that rating is exhausted in 500 days - barely 1.5 years. Under-specifying in warehousing means annual slide replacement on hundreds of drawers simultaneously, with associated labor cost and operational downtime.
The combination of high load + high frequency is what destroys standard slides. A 50,000-cycle rating at full load sounds generous for residential use (15+ years at 10/day), but in a warehouse doing 100 picks/day, that rating is exhausted in 500 days - barely 1.5 years. Under-specifying in warehousing means annual slide replacement on hundreds of drawers simultaneously, with associated labor cost and operational downtime.
Recommended Models
You May Also Need
Selected Case Studies
Detailed Selection Notes
Heavy-duty slide selection for warehouse applications:
1. Cycle life calculation: Annual cycles = daily picks x 365. For 5-year replacement target, need 5x annual. Example: 80 picks/day = 29,200/year = need 146,000+ cycle rating. BWD 150 lb heavy-duty at typical 60% load delivers 200,000+ effective cycles. BWD 250 lb at same 60% load = 250,000+.
2. Speed and impact: Fast picker operation means drawers are opened rapidly and hit the full-extension stop with force. BWD heavy-duty slides use polymer end-stop bumpers (not metal-to-metal) rated for 2,000+ impacts without deformation. For high-speed automated systems, specify the pneumatic soft-stop option.
3. Drawer weight distribution: Warehouse bin drawers often have uneven loading (heavy items on one side). This creates a racking force that standard slides don't resist well. BWD warehouse variant includes anti-rack reinforcement (cross-bracing channel in the ball cage) preventing lateral play even under asymmetric loads.
4. Mounting standardization: If deploying across hundreds of identical drawer units (typical in VLMs and carousels), BWD offers pre-assembled slide + bracket kits with exact-match mounting holes for Hanel Rotomat, Kardex Shuttle XP, and Modula Lift models. This eliminates field drilling and reduces installation time to <2 minutes per drawer.
5. Maintenance access: Warehouse slides must be replaceable without removing all drawer contents. BWD disconnect feature allows slide separation with a single lever press - drawer lifts out, new slide clips in, drawer re-inserts. Total replacement time: <5 minutes without emptying.
