Locking Drawer Slides for Server Racks
Server Maintenance Demands Lock-Out

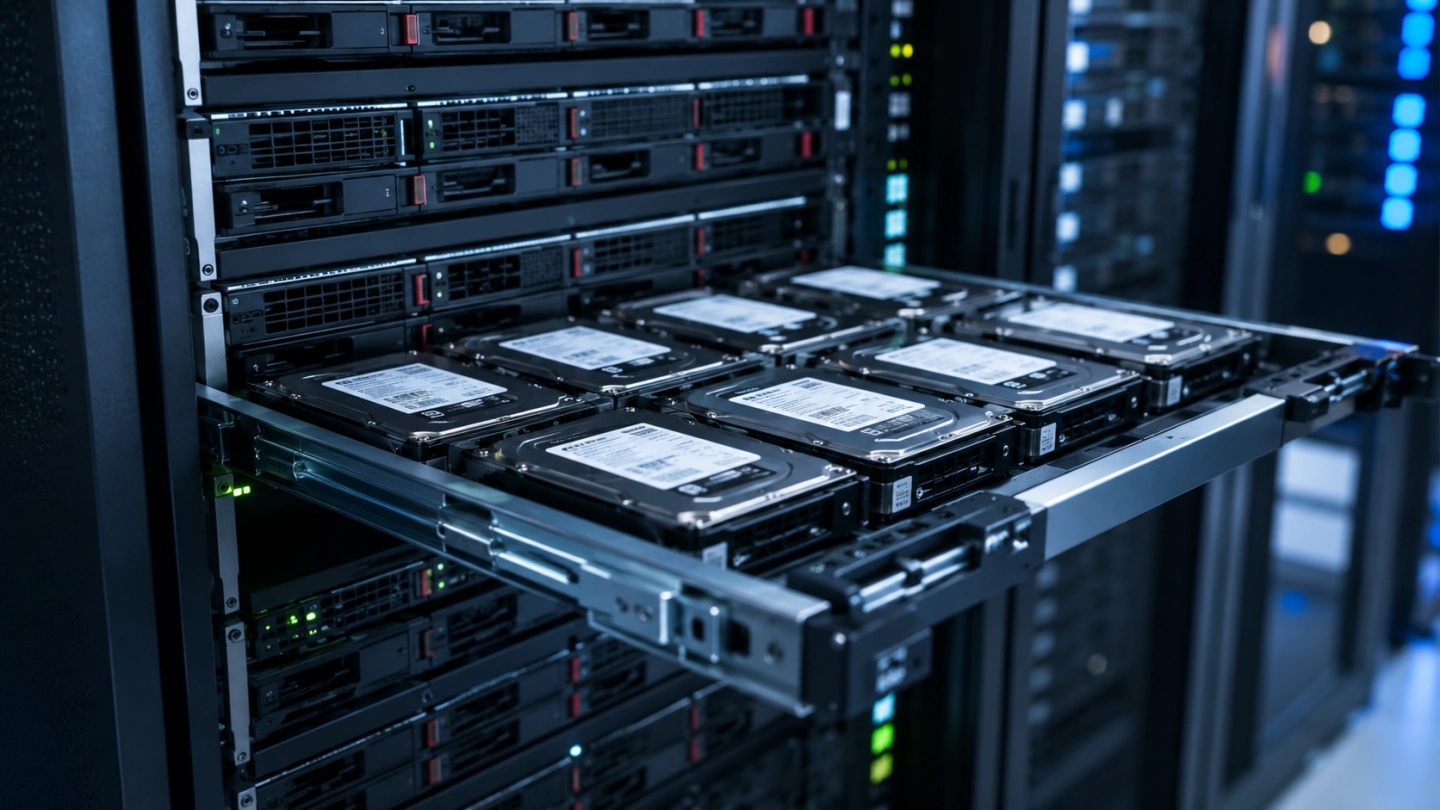

When IT technicians slide a fully-extended server (25-60 kg) out of the rack for maintenance, the slides must lock open reliably. Without lock-out: the server rolls back under its own weight, potentially crushing fingers, damaging cable connections, or causing the server to partially unseat from the rail - dropping onto the technician or the server below.
Data center safety standards (OSHA 1910.176, EN 14122-3) require positive retention at full extension for any equipment weighing >10 kg. Additionally, NEBS GR-63-CORE (seismic) requires positive lock-in (closed position) to prevent servers from sliding out during earthquakes - a critical requirement in California, Japan, Taiwan, and Pacific Rim facilities.
Beyond safety, lock-out enables single-technician maintenance. Without it, one person must hold the server while another works on it - doubling labor cost for every hardware swap, drive replacement, or memory upgrade.
Data center safety standards (OSHA 1910.176, EN 14122-3) require positive retention at full extension for any equipment weighing >10 kg. Additionally, NEBS GR-63-CORE (seismic) requires positive lock-in (closed position) to prevent servers from sliding out during earthquakes - a critical requirement in California, Japan, Taiwan, and Pacific Rim facilities.
Beyond safety, lock-out enables single-technician maintenance. Without it, one person must hold the server while another works on it - doubling labor cost for every hardware swap, drive replacement, or memory upgrade.
BWD Solution
BWD server rack locking slides provide both lock-in (closed/transit) and lock-out (fully extended/maintenance) in a single mechanism:
Lock-out: spring-loaded detent engages automatically at 100% extension. Release requires intentional lever press (>15 N deliberate force) - cannot be accidentally released by cable tension or vibration. Holds full rated load (100-250 lb) at any angle up to 15 degrees from horizontal (covers seismic tilt scenarios).
Lock-in: secondary detent at closed position prevents forward slide-out. Release force >20 N ensures servers stay racked during seismic events up to Zone 4 (0.4 g horizontal per NEBS GR-63-CORE). Also prevents walk-out from fan vibration in densely populated racks.
Mounting: tool-less snap-in to standard 19-inch EIA-310-E square-hole racks. Adjustable depth 680-880 mm without tools. Front-accessible release lever allows single-technician operation from the cold aisle.
Compatibility: verified fit with Dell PowerEdge, HPE ProLiant, Supermicro, and Lenovo ThinkSystem chassis. Custom bracket kits available for non-standard chassis on MOQ 100 pairs.
Lock-out: spring-loaded detent engages automatically at 100% extension. Release requires intentional lever press (>15 N deliberate force) - cannot be accidentally released by cable tension or vibration. Holds full rated load (100-250 lb) at any angle up to 15 degrees from horizontal (covers seismic tilt scenarios).
Lock-in: secondary detent at closed position prevents forward slide-out. Release force >20 N ensures servers stay racked during seismic events up to Zone 4 (0.4 g horizontal per NEBS GR-63-CORE). Also prevents walk-out from fan vibration in densely populated racks.
Mounting: tool-less snap-in to standard 19-inch EIA-310-E square-hole racks. Adjustable depth 680-880 mm without tools. Front-accessible release lever allows single-technician operation from the cold aisle.
Compatibility: verified fit with Dell PowerEdge, HPE ProLiant, Supermicro, and Lenovo ThinkSystem chassis. Custom bracket kits available for non-standard chassis on MOQ 100 pairs.
Recommended Model
FAQ
You May Also Need
Selected Case Studies
Detailed Selection Notes
Server rack locking slide specification:
1. Weight class: For 1U servers (15-20 kg) = 100 lb locking rail. For 2U (20-35 kg) = 150 lb. For 4U storage/GPU (35-60 kg) = 250 lb. Always use actual configured weight (all drives, GPUs, memory populated), not empty chassis weight.
2. Seismic requirement: If any servers deploy in Zone 3+ (California, Pacific NW, Japan, Taiwan, New Zealand) = specify seismic-rated lock-in. BWD seismic variant adds anti-walk brackets preventing lateral movement. Standard lock-in (for vibration/transit only) does not meet NEBS GR-63.
3. Cable management arm (CMA): If servers use CMA, specify the CMA-compatible variant with intermediate stop at 80% extension. This allows cable routing without fully extending the server - reducing cable strain.
4. Service corridor: Verify that your aisle width accommodates full server extension (typically server depth + 50-100 mm overshoot). If aisle is narrow, consider 3/4-extension (75%) lock-out variant for confined spaces.
5. Mixed rack environments: Many racks contain servers from multiple OEMs. BWD universal bracket kit mounts to all common chassis mounting hole patterns - eliminating the need for OEM-specific proprietary rail kits at 3-5x the cost.
1. Weight class: For 1U servers (15-20 kg) = 100 lb locking rail. For 2U (20-35 kg) = 150 lb. For 4U storage/GPU (35-60 kg) = 250 lb. Always use actual configured weight (all drives, GPUs, memory populated), not empty chassis weight.
2. Seismic requirement: If any servers deploy in Zone 3+ (California, Pacific NW, Japan, Taiwan, New Zealand) = specify seismic-rated lock-in. BWD seismic variant adds anti-walk brackets preventing lateral movement. Standard lock-in (for vibration/transit only) does not meet NEBS GR-63.
3. Cable management arm (CMA): If servers use CMA, specify the CMA-compatible variant with intermediate stop at 80% extension. This allows cable routing without fully extending the server - reducing cable strain.
4. Service corridor: Verify that your aisle width accommodates full server extension (typically server depth + 50-100 mm overshoot). If aisle is narrow, consider 3/4-extension (75%) lock-out variant for confined spaces.
5. Mixed rack environments: Many racks contain servers from multiple OEMs. BWD universal bracket kit mounts to all common chassis mounting hole patterns - eliminating the need for OEM-specific proprietary rail kits at 3-5x the cost.
